Three chucks pipe and tube cutting machine

Product Details

Product Description

Product Description

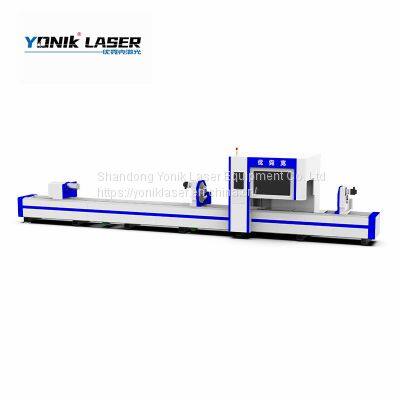

Three chucks pipe and tube cutting machine
l Chuck with self-adjusting center function for fast centering clamping
l The three-chuck structure combined with the follow-up support function can assist in correcting the deformation of the small pipe and improve the cutting accuracy
l It can realize zero tailing cutting, improve material utilization rate, and reduce material loss;
High-speed automatic cutting, which can meet the cutting of special-shaped pipes such as round pipes, square pipes, and rectangular pipes.

Mode	YONIK-6016S	YONIK-6022S	YONIK-6035S
Profile Cutting Sizes	Length≤6500mm, Φ15mm≤round pipe diameter≤Φ160mm, 15mm≤Rectangular and square tube diagonals≤ 160mm	Length≤6500mm, Φ15mm≤round pipe diameter≤Φ220mm, 15mm≤Rectangular and square tube diagonals≤ 220mm	Length≤6500mm, Φ15mm≤round pipe diameter≤Φ350mm, 15mm≤Rectangular and square tube diagonals≤ 350mm
Single Pipe Weight	≤160kgs	≤240kg	≤480kg
X Axis Travel	200mm	270mm	390mm
Z Axis Travel	420mm	480mm	600mm
Tail Waste	0
X/Y/Z Axis Positioning Accuracy	±0.05mm/m
X/Y/Z Axis Repositioning Accuracy	±0.03mm/m
Maximum Acceleration of Three-chuck Walking	1G
Maximum Speed of Three Chucks	85m/min
Maximum Rotating Speed of Three Chucks	100r/min
Other machine lengths and clamping pipe diameters can be customized, optional automatic feeding

---
