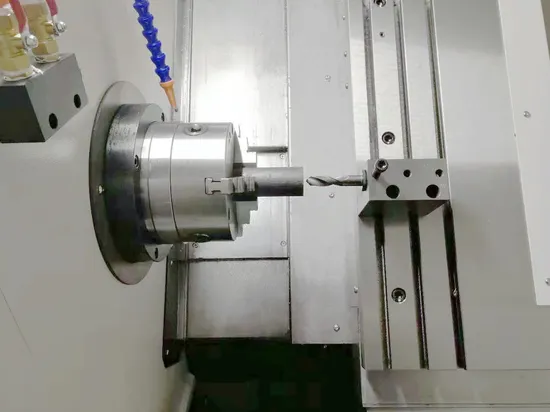

Tt5050 High Rigidity Precision Metal 2 Axis Turning Slant Bed CNC Lathe with Turret Tool

Product Description

Product Description
Product structure and features-frame and torque diagram
Casting treatment
Tempering treatment in casting factory
Aging treatment in factory more than 180 days

High rigidity and high speed linear guide way ensure machine more stable and precision

Headstock hole boring by special purpose machine;
Diameter error within 0.005mm. Roundness error within 0.002mm

Spindle noise not more than 80dB
Spindle temperature rise within22 ºC
The temperature difference within 5 ºC

High-end testing equipments

Roundness meter

Each machine will be inspected by laser interferometers before delivery

Machine model	TT5050
Max swing over bed	Φ520mm
Swing dia. over slide	Φ210mm
Turnning diameter	DiscΦ320mm
Turnning Langth	550mm
X travel	190mm
Z travel	550mm
X/Z fast moving speed	X/Z:24/24m/min
Spindle max speed	4000rpm
Spindle model	A2-6
Spindle taper	Metric 80
Spindle hole diameter	Φ71mm
Through bar diameter	Φ50mm
Tailstock travel	120mm
Tailstock daimeter	Φ85mm
Tailstock taper	MT4
Turret	8T/80 servo turret
Square tool size	25*25
Boring tool diameter	Φ32
Chuck size	8 inch hollow hydraulic chuck
Overall dimension	2665*1740*1850mm
Net weight	3300kg
