US$15,000.00-30,000.00
|
1 Set
(MOQ)
|
Basic Info.
Processing Accessory
Conventional Metal Machining
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Spindle Motor and Manual Feeding
Controlling Mode
Manual Control
Certification
CE, ISO 9001
Spindle Taper
Metric 140#
Carriage Travel
650mm * 280mm
Rapid Feed:Long/Cross
3400mm/Min,1700mm/Min
Distance Between Centers
1.5m,2m,3m,4m,5m,6m,8m,10m,12m Optional
Metal Machining
Shaft Parts, Cylindrical and Disc Parts of Differe
Cutting Tools
HSS and Carbide Steel Cutters
Transport Package
in Wooden Case
Specification
Max. working weight 8000kg
Production Capacity
500sets/Year
Product Description
Product Description
CONVENTIONAL LATHE

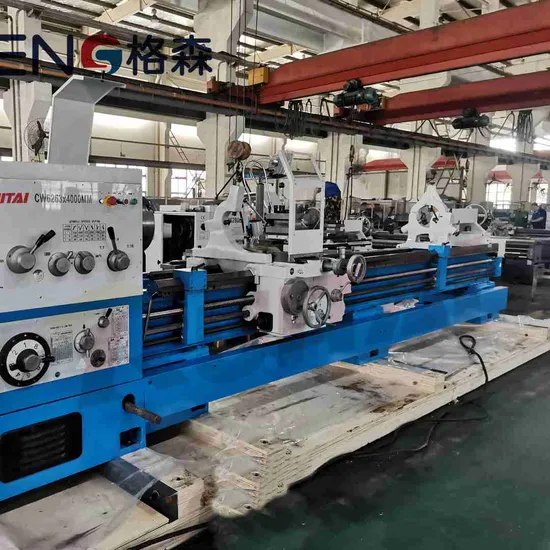

The CWA series horizontal machine tools are universalconventionallathe, which are applicable to machining shaft parts, cylindrical and disc parts of different materials with HSS and carbide steel cutters.
The conventional lathe is capable of turning, external circle, end face, groove cutting, cutting, boring, turning and boring of inner cone, various threads and other processes.
The main shaft of the machine adopts a three-support structure, and the whole bed forms a box shape, so that the bed has a high rigidity.
The machine tool is equipped with a separate oil pump for forced lubrication. The slide plate, knife rest, bed saddle and tailstock can move quickly, making the machine tool have the characteristics of strong rigidity, high efficiency, safety and reliability, convenient operation and beautiful appearance. Detailed Photos
Product Parameters
| ITEMS | MODEL | CW6163 | CW6180 | CW61100 | CW61120 |
| | | CW6263 | CW6280 | CW62100 | CW62120 |
| MACHINEING CAPACITY | Max.swing over bed | 630mm | 800mm | 1000mm | 1200mm |
| | Max.swing over gap -62 | 830mm | 1000mm | 1200mm | 1400mm |
| | Max.swing over cross slide | 345mm | 480mm | 680mm | 880mm |
| | Distance between centers | 850 1350 1850 28503850 4850 5850 7850 9850 11850 mm |
| | Width of bed | 600mm |
| HEAD STOCK | Spindle hole | φ105mm | φ105mm/ φ130mm |
| | Spindle taper hole | φ120mm 1:20 | φ120mm / φ140
1:20 |
| | spindle speeds | 7,5-1000r/min | 5.5-730r/min(18steps) |
GFAR BOX-
THRFADS&FFFDS | Metric threads mm | 1-240mm (52) |
| | Inch threads TPl | 1-14 (26) |
| | Moudle threads mm | 0.5-120mm (53) |
| | Diametral threads DP | 1-28 (24) |
| | Longitudinal feeds range | 0.1-24.3mm/r |
| | Cross feed rang | 0.05-12.15mm/r |
| | Rapid feed:long/cross | 4000mm/min, 2000mm/min |
| TOOL-POST | Tool section | 32×32mm |
| CARRIAGE | Cross slide trave | 370mm | 430mm |
| | Compound rest travel | 200mm | 200(170)mm |
| TAILSTOCK | Sleeve diameter | φ100mm | φ120mm |
| | Sleeve taper | Mohs6* |
| | Sleeve trave | 240mm |
| STEADY REST | Steady res | φ20-200mm |
| | Follow rest | φ20-135mm |
| MOTOR | Main motor | 11KW/15kw |
| | Rapid feed motor | 1.1KW |
| ITEMS | MODEL | CW6163E | CW6180E | CW61100E | CW61120E |
| | | CW6263E | CW6280E | CW62100E | CW62120E |
| CAPACITIES | Max.swing over bed | 630mm | 800mm | 1000mm | 1200mm |
| | Max swing over cross slide | 350mm | 485mm | 685mm | 800mm |
| | Distance between centers | 750,1250,1750,2750,3750 mm |
| | Max.swing over gap -62 | 830mm | 1000mm | 1200mm | 1400mm |
| | Valid length of gap | 230mm |
| | Bed width | 550mm |
| HEADSTOCK | Spindle hole | φ105mm | φ105mm /φ130mm |
| | Spindle nose | C-11 or D-11 |
| | Spindle taper hole | φ120mm
1:20 | φ120mm/φ140mm
1:20 |
| | Spindle speeds(Number) | 14-750rpm (18 steps) |
| |
GEAR BOX-
THREADS &FEEDS | Metric threads range(kinds) | 1-240mm (54kinds) |
| | Inch threads range (kinds) | 28-1inch (36kinds) |
| | Moudle threads range(kinds) | 0.5-60DP (27kinds) |
| | Diametral therads range(kinds) | 30-1 t.p.i (27kinds) |
| | Longtudinal feeds range (kinds) | 0.048-24.3 mm/r(72kinds) |
| | Cross feed range(kinds) | 0.024-12.15 mm/r(72kinds) |
| | Rapid feed:Long./Cross | 4/2 m/min |
| | Leadscrew size:Diameter/Pitch | T48mm/12mm or T55mm/12mm (≥5m) |
| | CARRIAGE | |
| | Cross slide travel | 350mm | 420mm | 520mm | 620mm |
| | Compound rest travel | 200mm |
| | Size of tool shank | 32×32mm |
| | | |
| TAILSTOCK | Spindle diameter | φ100mm | φ120mm |
| | Spindle taper | MORES 6" |
| | Spindle travel | 240mm |
| | | |
| MOTOR | Main drive moter | 11kw |
| | Coolant pump motor | 0.09kw |
| | Rapid feed motor | 1.1kw |
