US$7,200.00-7,700.00
|
1 Set
(MOQ)
|
Basic Info.
Application
Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Weight Level
Feature
Explosion-Proof, Insulating
Certification
GS, CE, RoHS, ISO 9001
Drive Speed (Stowed)
4km/H
Turning Radius
Rotate in Place
Crawler (mm)
150mmx72mmx43
Transport Package
High Quality Paper Boxes with Stretch Film
Specification
1.48m * 0.79m * 2.07m
Production Capacity
20, 000 Units / Year
Packaging & Delivery
Package Size
148.00cm * 79.00cm * 207.00cm
Package Gross Weight
920.000kg

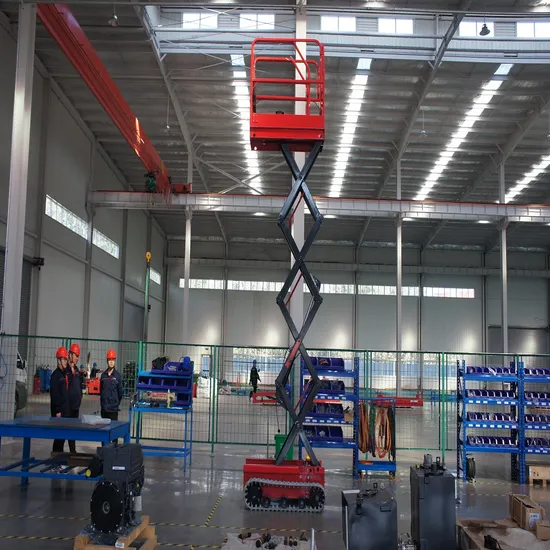

Product Description
Online consultation to get the lowest price
1. Compact structure, light weight, accessible elevators.
2. Motor and crawler drive, lower noise, stronger passability.
3. Large capacity batteries, better endurance.
| MODEL | HC0507E |
| A-Max. Platform Height(In/out) | 4.5m/0m |
| Max. Working Height(In/out) | 6.5m/0m |
| B-Platform Length | 1.34m |
| C-Platform Width | 0.72m |
| Extension Size | 0.6m |
| D-Heights (Rails Up) | 2.07m |
| Height (Rails Down) | 1.71m |
| E-Overall Width with Outriggers | 1.48m |
| F-Overall Width | 0.79m |
| G- Ground Clearance | 70mm |
| PERFORMANCE |
| Platform Capacity | 230kg |
| Extension Capacity | 113kg |
| Max. Occupancy(in/out) | 1/0 |
| Max.Wind Speed | 0m/s |
| Drive Speed (Stowed) | 4km/h |
| Turning Radius | Rotate in Place |
| Up/Down Time | 25/20s |
| Gradeability | 0.25 |
| Max. Slope | 1.5°/3° |
| Leveling angle of the legs | / |
| Drive | Front Crawler |
| Crawler (mm) | 150mmX72mmX43 |
| POWER |
| Batteries (V/Ah) | 2X12V/100Ah |
| Charger | 100-240VAC/6.3A |
| WEIGHT |
| Weight | 920kg |
>>
