Beans and Peas Hot Air Dryer Oven in Competitive Price

Product Description

Product Description Product Description

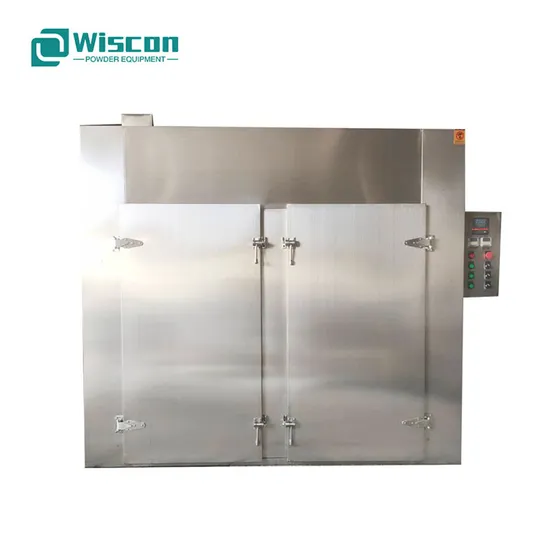

The tray dryer is equipped with a low-noise, high-temperature-resistant axial flow fan, and an automatic temperature control
system. The entire circulation system is fully enclosed, which improves thermal efficiency. A forced dehumidification centrifugal
fan is optional for the dryer; it can regularly discharge the hot and humid air from the dryer, which can increase the efficiency
and achieve an energy-saving state. The Tray dryer is equipped with an automatic temperature control system for precise
temperature control. it is widely used in all kinds of materials.
Applicable Materials
Drying process of powder, paste-like, and filter cake-like materials.
Typical Application
Herbal plants and leaves, dehydrated vegetables, agricultural products, meat products, seafood, seeds, nuts, fiber garlic slices,
date slices, carrot sticks, cassava slices, onion shreds, feed, coconut, bamboo fiber, palm fiber, coconut shell, activated carbon
particles, synthetic rubber, catalyst particles, electronic components, plastic resins, etc.
Working Principle
The hot air circulation tray dryer adopts a high-temperature-resistant long-shaft circulation fan, and the forced hot air heated by
an electric heating tube or a steam heat exchanger is circulated in the oven. The drying oven is equipped with adjustable air
distribution plates; with the effect of forced ventilation, the relative temperature is more uniform and heat transfer is enhanced,
which increases the moisture evaporation rate and shortens the drying time. The whole oven body adopts a fully-enclosed structure;
most of the hot air circulates in the oven, and hot and humid air is rationally discharged, it has the advantages of high thermal
efficiency, energy-saving, and uniform drying of materials under the effect of forced ventilation.
Product Parameters

Model	CT-C-O	CT-C-	CT-C-	CT-C-	CT-C-
Drying Capacity(kg/batch)	50~60	100~120	200~240	300~360	400~480
Evaporation Area(m3)	7.1	14.1	28.3	42.4	56.5
Efficient Volume(m3)	1.3	2.6	4.9	7.4	10.3
Electric Heating Power (kw)	9	15	30	45	60
Steam Consumption(m2)	10	18	36	72	90
Heat Exchange Area(m2)	10	20	40	80	100
Temperature Differ (ºC)	±5	±5	±5	±10	±10
Hot Air circulating fan(kw)	0.45 x 1	0.45 x 1	0.45 x 2	0.45 x 3	0.45 x 4
Hot Air Fan Volum.(m3/h)	3450	3450	6900	10350	13800
Moisture discharge Fan (Kw)	0.45	0.45	0.45	1.1	1.1
Trolley Qty(pcs)	1	2	4	6	8
Tray Qty (pcs)	24	48	96	144	192
Overall Dimension(mm)	1610X1200X2000	2490X1200X2000	2490X2200X2000	3470X2200X2000	4510X2200X2000
Gross Weight(kg)	680	800	1300	1800	2800

Product Details
Why us Wuxi Wiscon mechanical and Electrical Equipment Co., Ltd. is an integrated company specializing in powder production for the food,
pharmaceutical, chemical, and biological industries since 2016.
Main products categories cover the following equipment:
a. Drying Equipment: rotary atomizer spray dryer, pressure nozzle spray dryer, tray drying oven.
b. Powder Mixer: Conical Screw mixer, Ribbon mixer, Ploughshare Mixer, V-shaped mixer, and Double cone mixer for bulk materials.
c. Vibration Screener: Rotary vibratory Screener, Tumbler Screening Machine, and Centrifugal shifter for fine powder separation.
d. Grinding Machine: Universal Mill, Air Classified Mill for food and Pharmaceutical.
e. Granulating Equipment: High Shear Mixer Granulator and Fluid Bed Granulator
f. Vacuum conveyor: Pneumatic vacuum Feeder for BIC, Bagging machine, powder mixer, sieve, etc.
FAQ Questionnaire for tray drying oven
In order to quote you the right tray drying oven price, Please specify as much information as possible
- What are the materials to be handled?
- What's the drying capacity per batch?
- What is the initial moisture of the raw materials?
- What is the desired moisture of the final product?

---
