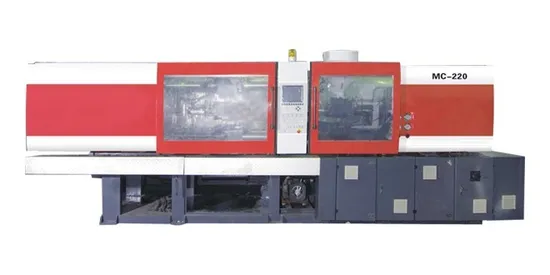

Double Colour Series Plastic Injection Machine

Product Description

Double Colour Series Plastic Injection Machine
Multi Colour Clear series: Placing the two sets of parallel independent single-cylinder injection system, the fuel tank can be any combination of two movements of the injection; Adjustable precision mold rotation (dial) devices.
Mix two colour series: The use of new single-cylinder injection structure, compact structure; The special material mixer, the injection can be automated to achieve material A, material B two kinds of feed material of the switch, control precision; Seven different colour combinations to control the way, can easily be dozens of different combinations of the injection action.

	ITEMS	UNIT	MC-250			MC-400
			60SU	90SU	130SU	130SU	160SU	220SU
Injection Unit	Screw Diameter	mm	32	35	40	40	45	50
	L/D Screw L/D Ratio	L/D	21			21
	Theoretical injection Pressure	Mpa	184.6	198.9	189.9	184.6	198.9	189.9
	Theoretical Shot Volume	cm³	92	164	251	251	350	491
	Injection Stroke	mm	115	170	200	200	220	250
	(PS) Shot Weight of Injection (PS)	g	85	150	231	231	322	452
	(PS) Plasticizing capacity (PS)	g/s
	Injection Rate	g/s
	Calculated Maximum Screw Speed	r/min	600	450	446	420	400	355
	Nozzle Stroke	mm	350	350	450	450	450	500
	Nozzle Contact Force	KN	27	39	39	39	53	70
	Hopper Capacity	cm³	28			28	40	40
	No. OF Temperature		4+1			530/140
	Type of Nozzle		Open			1+1
			DOUBLE TOGGLE			DOUBLE TOGGLE
Clamping Unit	Mould Clamping Force	KN	2500			4000
	Max. DAYLIGHT	mm	885			1246
	Mould Clamping Stroke	mm	435			596
	Mould Thickness	mm	180-450			300-650
	Space Between Tie Bars(H*V)	mm	795*440			1020*620
	Mould Plates Size (H*V)	mm	1000*705			1295*995
	Distance Between Nozzle	mm	400			500
	Ejector Force/Stroke	KN/mm	270/120			530/140
	No. of Ejector pins		1+1			1+1
Others	Pump Driving Motor	kw	18.55+18.5			30+30
	Heating Power	kw	6.9	7.7	9.9	9.9	12.0	15.9
	Max. Pump Pressure	MPa	14			14
	Machine Weight	ton	8.8			16.3
	Oil Reservoir Capacity	L	430			766

01 WHY CHOOSE MENGKWA?
1) Mechanical and electric parts of machines for our machines are from famous brands with reliable and stable quality .
2) Machine structures and applicant parts are heavy duty type .
3) Technologies of machines are developing to be much more energy saving and higher production output .
4) Engineers for installation and training are both available in China and abroad .
5) Our after service is available in 24hours by team group to every customer .
6) Our machines reach to 54 countries all over the world since 1996 .
02 TERMS OF PAYMENT
30% deposit and 70% balance before shipment after machine testing approved by customer .
03 PACKING AND LOADING
Safe packing for container loading OR heavy duty iron frame fixing OR wood cases packages .
04 AFTER-SALE SERVICE
1) 24 hours technical support by email, call, video.
2) Warranty for one year after 12 months of shipment.
3) Installation and commissioning engineer will provide the tech long machine, and machine operation of the buyer's personnel on-site training, troubleshooting and machine maintenance. The factory offers free installation training for a week the company engineers, beyond a week, the salaries borne by the customer engineer the factory.

---
