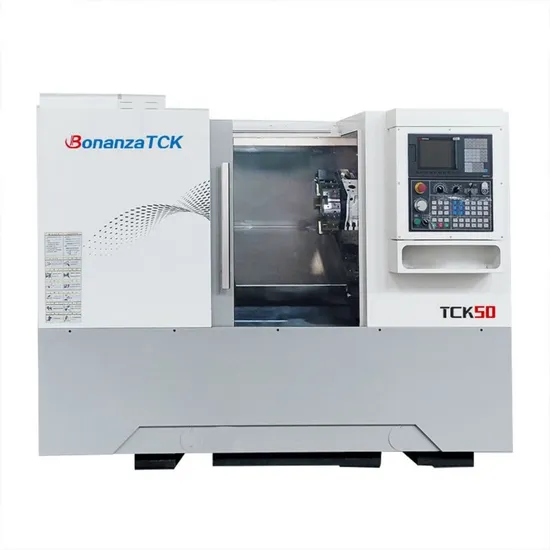

Tck50 CNC Lathe Can Be Equipped with System, High Metal Processing Efficiency

Product Description

Tck50 CNC Lathe Can be Equipped with System, High Metal Processing Efficiency
Product Description

1.This machine tool can process disc/ring parts, turn threads, arcs, cones, and the inner and outer surfaces of rotating bodies, and perform efficient, large-scale, and high-precision processing on rotating body parts.
2.As a universal machine tool, it is particularly suitable for efficient, large-scale, and high-precision processing of rotating parts in industries such as automobiles, motors, bearings, and hydraulic systems
3.The HT300 integrated casting bed has high tensile and seismic resistance.
4. Compact structural design with small footprint, saving land costs.
5. Hard rail tailstock reduces the reaction force of the workpiece and ensures the stability of the processed workpiece.
6. Using an 11KW spindle motor, the single tool cutting amount can reach 5mm.
7. This bed adopts a unit type spindle, which can achieve an accuracy of 0.003-0.005 compared to mechanical spindles.
8.Hydraulic locking is suitable for long axis machining
Product Parameters

item		Units	Specifications		Remarks
Maximum turning diameter on bed		mm	500
Maximum cutting length		mm	500
Maximum cutting diameter		mm	360		Horizontal 8-station tool holder
Standard cutting diameter		mm	240
Maximum turning diameter on the skateboard		mm	300
Spindle end type and code			A2-6		Integral spindle unit
Main shaft hole diameter		mm	65
Max over bar diameter		mm	50
Headstock	Spindle speed range	r/min	50 ~ 4500
	Maximum spindle output torque	Nm	177		ZJY265A-11AM-B5
			177		CTB-4011ZGC10
			235		Beta iIP22/6000
	Spindle speed series		Stepless speed change
	Main motor output power	kW	15 (30 min.) /11 (rated)		ZJY265A-11AM-B5
			15 (30 min.) /11 (rated)		CTB-4011ZGC10
			15 (15 min.) /11 (rated)		Beta iIP22/6000
Chuck	Chuck diameter/type	mm	8 hollow"
X-axis Fast shift speed		m/min	30
Z-axis fast shift speed		m/min	30
X-axis stroke		mm	200
Z-axis travel		mm	550
Tailseat travel		mm	450
Tailstock sleeve stroke		mm	100
Tailstock sleeve cone hole taper		Mohs	5#
Standard knife holder form			Horizontal 8 station

Machine structure 1.Integrated casting bed body, resistant to tension and earthquake resistance. 2.30 ° inclined bed for more convenient chip removal.

Servo Turret 1. Standard: Horizontal 12''inch servo turret 2. Optional: Live turret

Hydraulic chuck 1.Standard: 10'' inch hydraulic chuck 2. Optional: 12'' inch

Hard rail tailstock 1. High stability, 2. Strong rigidity 3. Helps improve processing accuracy 4. Increase load capacity 5. Long service life

Company Profile

Certifications

Packaging & Shipping

FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,
Vertical Machining Center ,Lathe Machines and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
7: What about your warranty?
A: Warranty is five year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
8:How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems.

---
