High-Quality PVC for Efficient Water Systems

Product Description

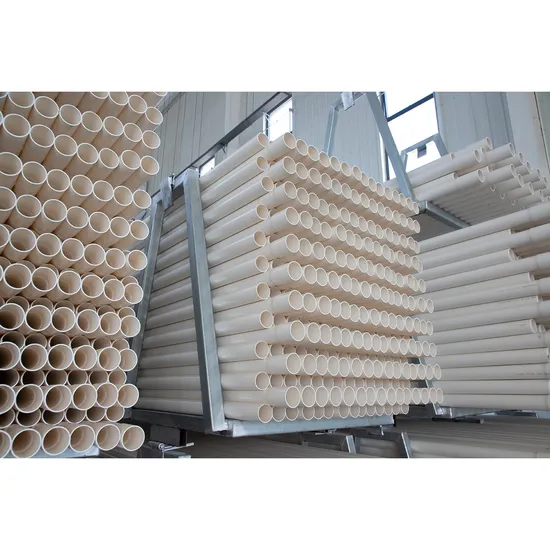

Product DescriptionThe PVC water supply pipe is made of PVC resin as the main raw material, special additives are added, and extruded by an extruder. The pipe interface has good sealing performance, beautiful appearance, durability, and hygienic material. It has no pollution to water quality. The inner wall is smooth and the water delivery capacity is large. It is corrosion-resistant and has a long service life. It is light in weight and easy to transport. It is easy to construct. It has good pressure resistance (0.1MPa-4.0MPa) and can withstand temperatures from -30 ° C to + 60 ° C. It will not harden or soften the pipe due to climate or temperature changes. Easy maintenance and low maintenance cost. Widely used in indoor water supply, drinking water, and other water diversion projects. Because of its good seawater corrosion resistance, the price is much lower than that of stainless steel hoses, and it is also used in offshore operations. Its specifications can be customized according to customer needs.
Product Parameters

item	parameters
temperature	-30ºC-+60ºC
Pressure resistance performance	0.1MPa-4.0MPa
service life	≥50years

product performance
1. Non-toxic, no secondary pollution: PVC pipes are hygienic and non-toxic, do not scale during use, do not breed algae and other microorganisms, and will not cause secondary pollution to water qualityDye.
2, flow resistance is small: PVC pipe inner wall is smooth, flow resistance is small, its roughness is 008-0.009, water delivery capacity is 20% higher than cast iron pipe, concrete pipe increased by 40%.
3. Long service life: The service life of traditional pipes is 20-30 years, and the service life of PVC pipes is not less than 50 years under rated temperature and pressure.
4. Light weight and convenient shipment: The specific gravity of PVC pipes is only 115 of steel cast iron pipes and 1/2 of concrete. The weight of pipes is lighter than that of congeneric products and ductile iron pipes of the same length
1/4, 1/10 of concrete. Therefore, easy to load and unload, can reduce the freight 112-113.
5, good mechanical properties: tensile strength at 23 ºC is not less than 45Mpa, good compressive resistance, pressure to 1/2 of the outer diameter will not break.
6, easy to connect, easy to install: because PVC pipe is light, easy to connect, and has a certain toughness. So the installation is simple, compared with other pipes, the more complex the pipeline system, the more prominent the advantages of PVC pipe.
7. Easy maintenance: The maintenance cost of PVC pipes is only 30% of that of cast iron pipes or concrete pipes.Installation Instructions
Solvent bonding connection method:
Wipe the inner wall of the pipe fitting socket and both ends of the straight pipe clean, so that there is no moisture or oil stains. Measure the length of the straight pipe that should be inserted into the pipe fitting socket, and mark the mark on the straight pipe.
Put the installation tool (referring to D110 or above), such as the wire tightening machine, into the straight pipe, prepare it, and then apply a thin adhesive evenly on the inner wall of the pipe socket and the insertion part of the straight pipe. Insert the straight pipe into the pipe socket immediately, and insert the straight pipe into the marked position with the wire tightening machine for 15 minutes.
Flared socket connection method:
Clean up the inner wall of the flared tube and the outer wall of the straight tube insertion part. Measure the length of the flared part and mark it on the inserted straight tube (the length mark should be appropriately shorter than the measured length). Rotate the rubber ring and place it in the groove of the flared end (the sloped end of the rubber ring is outward). The inserted straight tube end should be chamfered at 15 ° to facilitate smooth insertion. Align the straight tube insertion end with the flared end and insert it, and insert the straight tube into the marking line with a wire tightening machine. FAQ1,What's your minimum order quantity?
Our minimum order quantity is usually 1 CTN.
2,How long is the delivery cycle?
The delivery time is approximately 15 - 20 days. (If the quantity is less than 10 cartons, it will take about 3 - 5 days.)
3,Where is the port of shipment?
We ship the goods via Tianjin Port.
4,What are your payment terms?
We accept 30% telegraphic transfer as advance payment, 70% payment during the shipment period or 100% letter of credit.
5,How can I contact you?
You can contact us through the trade manager or click on "Contact Supplier" at the bottom to send us an email.
6,Where is your company located?
Our company is located in Cangzhou, Hebei Province, China. You are very welcome to visit us if you'd like.
7,How about the samples?
We can send samples to you. Most samples can be sent to most parts of China for free. If they are sent to other countries, the transportation cost should be borne by your side.
8,Why choose us?
Our products are genuine, of high quality and with competitive prices.
We have cooperated with customers all over the world and have a good understanding of the market.
You will be very satisfied with our after-sales service.
Any questions and feedback will be replied to within a very short time.

---
