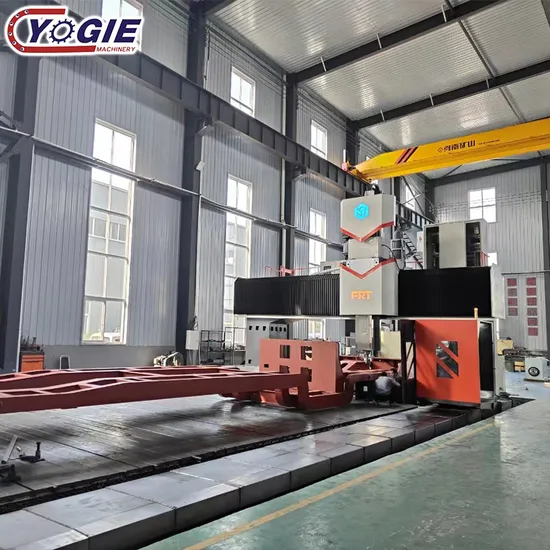

Multi-Task Fanuc/Siemens Frt130520 Heavy Duty Double Column CNC Milling Machine CNC Gantry Machining Center Gantry Milling Machine

Product Description

Product Description
Product Parameters

Technical specification		FRT-SP10400	FRT-SP120450	FRT-SP150550	FRT-SP20650
Travel
XYZ axis travel (worklable left and right movement)	mm	10000/4350/1500	12000/4850/1500	15000/5850/2000	20000/6850/2000
Distance of spindle nose andworking table surface	mm	100-1600	500-2000	500-2500	500-2500
Gantry width	mm	4000	4500	5500	6500
Guide rail		Two linear guide rail,one hardened rail
Work Table
Table size	mm	10000X3500	12000X4000	15000X4800	20000X5800
The maximum load capacity of the worktable	T	15/m^2
Spindle
The spindle taper (model, sleeve diameter)		BT50
The spindle dimension	mm	195	220	230	260
Thespindle motor power	kw	45	55	65	70
Spindle speed	rpm	4000	4000	3500	3000
Accuracy
Precision of position	mm	0.02/1000
Accuracy of repeated position	mm	±0.015
Size
Netweight(approx.)	T	160	180	220	280

Company Profile
Our customers




FAQ
Q:What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
Q:How can I choose the most suitable machines ?
A:Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
Q:What is the payment Terms ?
A:T/T ,50% initial payment when order ,50% balance payment before shipment ; Irrevocable LC at sight .
4.Can your company send the technical personnel to our company and direct our workers for free?
A:When the machine arrive the buyer's installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD200.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

---
