Greenlandplast Manufacturer Plastic Pelletizing Machine Plastic Granulator Machine Recycling Pelletizing Plastic

Product Description

Product Description

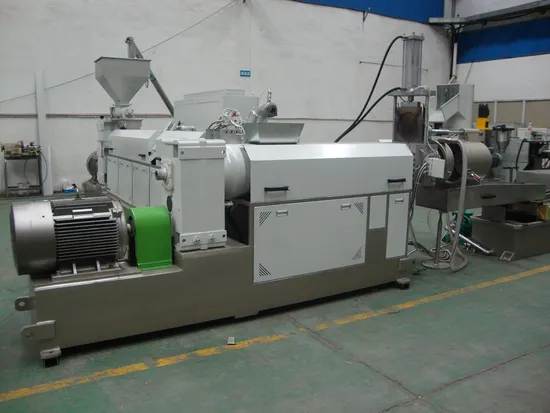

Plastic granulator machine recycling pelletizing plastic recycling plant pelletizing machine
*This plastic recycling granulating line is mainly used for the recycling granulation/pelletizing of rigid regrind flakes material ,it can also be used for washing and drying regrind flakes , squeezed and compacted film materials and the semi-plasticized materials after agglomeration. By equipping with different feeding methods and pelletizing methods, installating forced feeding system can also be used for pelletizing of film crushed scraps. It can be suitable for recycling and pelletizing of various types and properties material, such as PE, PE, ABS, PS , PC, PA, PVC and other materials.
*The recycled plastic material are usually conveyed by screw feeder or belt conveyor into extrusion system, then the material are fed to the extruder screw barrel through a quantitfy feeding device. The screw is specially designed for the recycled material recycling pelletizing , and has advantage of fast feeding&stable and resistance. With natural venting and vacuum system; can effectively discharge the water inside the material; the extruder uses cast aluminum heaters or ceramic heater, durable. Customers aso may choose two-stage pelletizing system, use the two extruders pass the secondary filtration to make the pellets be cleaner and higher quality;
Available materials
PE,PP,HIPS,ABS,PC,etc., crushed granules and plastic flakes.
Product Parameters
Technical date

Model	Screw Diameter(mm)	L/D	Motor Power	Capacity
GLP100-100	100	25-33:1&10-12:1	55/22kw	150-200kgh
GLP120-120	120	25-33:1&10-12:1	90/37kw	250-350kgh
GLP140-140	140	25-33:1&10-12:1	132/55kw	400-500kgh
GLP160-160	160	25-33:1&10-12:1	160/75kw	550-650kgh
GLP180-180	180	25-33:1&10-12:1	185/90kw	650-800kgh
GLP200-200	200	25-33:1&10-12:1	250/110kw	800-1000kgh

Detailed Photos
1)Quantitative feeding system
2)Extrusion sytem
3)Screen change filter system
4)Pelletizer cutting system
5)Vibration dewatering system
6)Air conveyor&hopper storage

---
