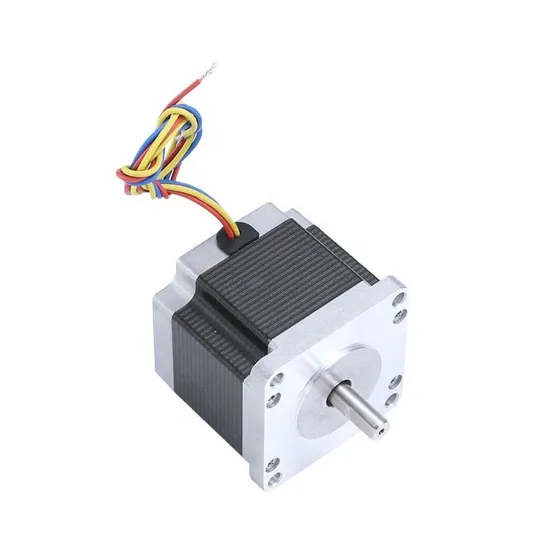

Stepping Motors of 57 Series

US$5.00-95.00 1 Piece (MOQ)

Basic Info.

Model NO.
57 series
Number of Stator
Two-Phase
Excitation Mode
HB-Hybrid
Function
Control, Driving
Number of Poles
4
Operate Mode
The Three Single Phase
Type
Hybrid
Certification
ISO9001, CE
Brand
Mige
Phase
2
Warranty
3months-1year
Current / Phase
2/3(a)
Transport Package
Packed in Carton or Plywood Case.
Specification
57mm
Trademark
MIGE
Origin
Zhejiang, China
HS Code
85013100
Production Capacity
50000 Case/Cases Per Month

Packaging & Delivery

Package Size
20.00cm * 16.00cm * 14.00cm
Package Gross Weight
1.500kg

Product Description

Stepping motors of 57 series specifications
Model Step Angel(°) Length(mm) Holding torque(N.m) Current(A) Resistance(Ω) Inductance(mH) Rotor inertia(g.cm²) Weight(kg) Shaft diameter(mm)
F57-H41 1.8 41 0.39 2.0 1.4 1.4 120 0.45 6.35
F57-H51 51 0.72 3.0 0.74 0.9 275 0.65 6.35
F57-H56 56 0.90 3.0 0.75 1.1 300 0.7 6.35
F57-H76 76 1.35 3.0 1.0 1.6 480 1.0 6.35
Only the representation of the products , we can design according to clients' requirement.
