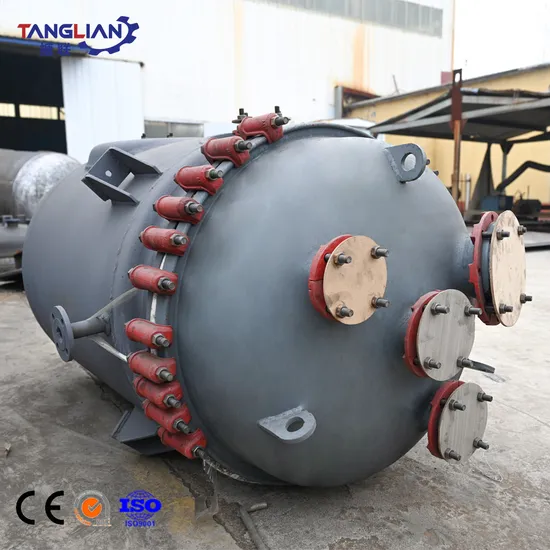

Industrial Pharmaceutical Continuous Stir Glass Reactor From Tanglian

Product Description

·Purchase from first class brand steel suppliers,more then 20 years excellent glass lining technology.
·The welding seam is precise and meticulous,the workmanship is fine and ingenious,and each process is strictly controlled.
·With good sealing and stability,long service life,and independent design mechanism.
·The internal enamel is not easy to fall off,wear-resistant and anti-corrosion.
Main Structure Design of K Type Glass-lined Reactor

pecification Model		K-50	K-100	K-200	K-300	K-500	K-1000	K-1500	K-2000	K-3000	K-5000	K-6300
Nominal Capacity (L)		50	100	200	300	500	1000	1500	2000	3000	5000	6300
Actual Capacity (L)		71	128	247	369	588	1250	1720	2160	3380	5224	6735
Heat Exchange Area(m2)		0.34	0.66	1.26	1.75	2.64	4.54	5.34	7.02	8.61	13	16.4
Dimension mm	D1	500	600	700	800	900	1200	1300	1300	1600	1750	1750
	D2	600	700	800	900	1000	1300	1450	1450	1750	1900	1900
	D3	706	816	918	1028	1130	1468	1622	1622	1964	2152	2152
	Hl	265	300	345	380	405	480	505	505	580	617	617
	H2	400	500	700	800	1000	1200	1400	1745	1740	2050	2997
	H3	300	320	350	350	400	500	500	500	600	670	700
	H4	945	945	953	1154	1154	1276	1276	1276	1326	1326	1475
	H	1705	1845	2110	2440	2700	3000	3310	3650	3785	4800	5580
Transmission model		BLD-1	BLD-1	BLD-1	BLD-2	BLD-2	BLD-3	BLD-3	BLD-3	BLD-3	BLD-4	BLD-4
Type of Agitators (r/min)	Frane(Anchor)Type	63/85	63/85	63/85	63/85	63/85	63/85	63/85	63/85	63/85	63/85	63/85
	Turbine Type	130	130	130	130	130	130	130	130	130	130	130
Glass-lined nozzle	a	80	80	125	125	150	300x400	300x400	300x400	300x400	300x400	300x400
	b	70	70	80	100	100	125	125	125	125	125	125
	c	70	70	70	70	70	100	100	100	100	125	125
	d	-	-	80	80	100	100	100	100	100	125	125
	e	70	70	70	70	80	100	25	25	25	25	25
	f	-	-	70	70	125	125	125	125	125	150	150
	g	70	70	-	-	-	100	100	100	100	125	125
	h	-	-	70	70	80	100	125	125	125	150	150
	Outlet	70	70	80	80	80	100	100	100	125	125	125
Jecket nozzle	Inlet(outlet)	3-20	3-20	3-25	3-25	3-32	3-32	4-50	4-40	3-50	3-65	4-65
	Spray mouth	-	-	-	-	-	-	-	2-50	2-65	3-65	-
Reference Weight (Kg )		463	530	700	984	1213	1909	2441	2693	4060	5186	5844

Items.	Specification
MATERIAL	Carbon Steel with Glass Linning
DESIGN PRESSURE	Atmospheric pressure
DESIGN TEMPERATURE	-19 / 200
GLASS LINED THICKNESS	0.8-2.0

1,Strictly supervise material choice 2,Extremely skillful welding process
3,Senior manufacturing experience 4,Perfect established service system
5,Strictly controcl product standard 6,Professionally design qualification
Company Profile: Shandong Tanglian Chemical Equipment Co., Ltd. was established in 1998 and is located in Zibo, Shandong, the famous hometown of glass lining in China. It is a well-known chemical and pharmace-utical equipment manufacturer in northern China. As one of the backbone enterprises that pioneer-ed the production of glass-lined reactor equipment, its advanced production technology is well-known both at home and abroad.
Glass Lined Reactor Stainless Steel Reactor PTFE Lined Reactor Storage Tank Agitator Heat Exchanger wiped film evaporator Double Cone Vacuum Dryer
FAQ
Q1: Are you a factory or a trading company?
A1: Tanglian Heavy Industry Group Co., Ltd. is an integrated industry and trade enterprise with 7 subsidiaries under its
jurisdiction. It has the business capabilities of design, manufacturing, trade integration, and independent import and export.
Q2: Will there be any guarantee if I buy from you?
A2: We promise to provide a one-year warranty (from the date of delivery) for all products we currently sell.
Q3: Do you provide installation guidance or other after-sales service?
A3: Yes, of course. Installation drawings and installation manuals are provided. If you are still unable to assemble, we will
arrange for our engineers to help you with voice or video contact.
Q4: What are the payment methods and terms you accept?
A4: The payment methods we accept include: T/T, L/C, D/P; after signing the contract, the customer needs to pay 30% of the deposit first, and the remaining 70% of the payment is completed in the delivery money.
Q5: What is your delivery time?
A5: We can arrange FOB, CIF shipping methods. Usually, the delivery time for one device is 45 to 50 days, depending on the shipping method.
Q6: How do you pack and ship the equipment?
A6: We offer sea, rail or combined transportation. At the same time, we also provide LCL (LCL), Full Container (FCL), Flat Rack (FR), Bulk and Express to ensure that the goods are safe and free from damage.

---
