| US$15,000.00-150,000.00 | 1 set (MOQ) |
| Model | ACE-M240-6L-L |

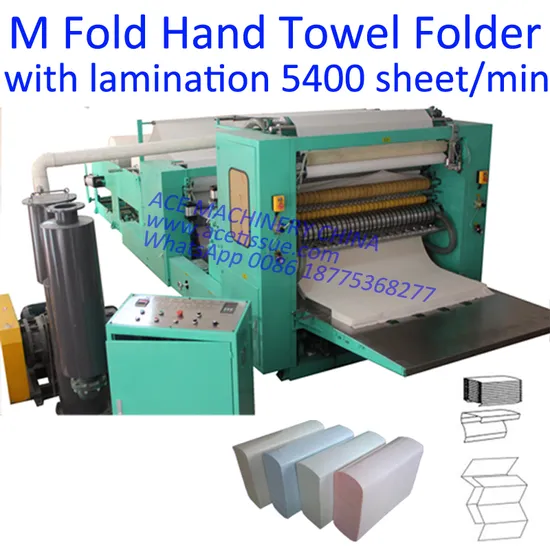

| Output type | lamination and Two Color Printing interfold dispenser napkin machine and point to point M fold hand paper towel machine |
| Folding speed | up to 1000 piece/min/lane * 6lanes = 6000 sheet/min, depending on the paper quality and napkin size. |
| Raw paper | 13-20g/m2 2-ply, 16-45g/m2 1-ply, wooden pulp paper or MG paper or nonwoven airlaid. Other sizes please specify. |
| Jumbo roll size | ≤ 1200mm x Φ1200mm (Depends on your napkin size, customized) |
| Napkin size | Open size: 240±2mm x 200mm Other size, please specify. Folded size: 80±2mm x 200mm Fixed cutoff cylinder size is 240m. Other size available, please specify. or Customized. |
| Folding type | Inter folding Vacuum fold W M fold, Four fold, Five fold, Six fold, 4 folds, 5 folds, 6 folds |
| Embossing unit | 1- Steel to steel. 2- Embossing pattern can be any LOGO, brand name, flowers etc. 3- Embossing pattern can be customized by client or recommended by us 4- Controlled by screws, mechanical pressing type. Cylinder type is optional. |
| Printing unit | Optional 1- Flexo printing type. 2- Printing colors customized up to 4 colors. 3- Printing Logo is changeable. You just need to change the Printing Rubber only. 4- Anilox printing roll. Ceramic anilox roller. 5- Printing roll is adjustable. 6- Ink printing system to be negotiated. 7- With doctor blades. 8- Closed chamber ink circulating system. |
| Point to point Lamination system | a. With 2 complete sets of point to point lamination units. b. The whole design is copied Italy design. c. Heavy chrome coating roll d. Micro-adjustment of nips between the steel roll e. Anilox roll for glue applicant. f. Controlled by cylinders g. Each lamination unit controlled by an independent reducer. When the machine stops, the motor will start running to rotate the anilox roll to prevent it getting dry. |
| Tension control | Speedless Tension control unit to fit the machine for paper of different quaity and different gsm. With automatic web guiding system. With automatic web tension control system. |
| Counting | Automatic counting unit |
| Emergent stop | Emergent stop unit to inspect any paper breaks, paper jams. |
| Paper feeding | Synchronizer for feeding paper |
| Power | 7.5Kw for main motor 18.5KW for vacuum pump (3-phase AC380V 50Hz or customized) |
| Machine size | 6x2x2m |
| Weight | 6T |
| Videos and photos available. | |
