| US$19,800.00-25,800.00 | 1 set (MOQ) |

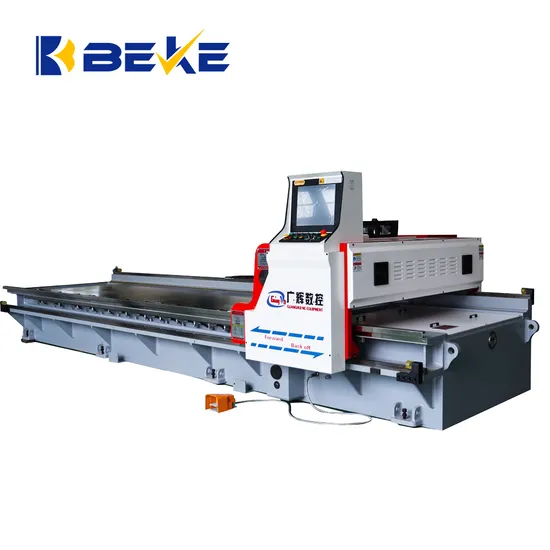

| GNVP Series V grooving machine introduction |
| In ordinary bending processing, a large arc is left at the bend, and the thicker the processed plate, the larger the arc. The existence of large arc angle affects the overall beauty of the product. In order to solve this problem, our company launched a series of CNC sheet metal V-Groove planer products with a new design concept. This series of products have high processing accuracy, easy operation, stable and reliable operation. It is used for V-groove processing on the stainless steel, iron plate, copper and other plates, especially suitable for V-grooving processing before sheet metal bending. |
| Japan Abel CNC Control System |
| Very stable and easy operation. Support 4 axis linkage. Minimum setting unit 0.01mm. PLC breaking function, fixed scan time 10ms. Each axis has feedback function for displaying axis position and avoiding allision. |
| Japan's Mitsubishi servo motor |
| Stable and high accuracy 5.5KW |
| Tool |
| It can be white steel blade and alloy blade. For thick sheet we recommend white steel plate. |
| Taiwan HIWIN or Japan THK guide rail. |
| Brand guide rail guarantees high moving precision. |
| Hydraulic type clamping |
| We call it Y2 axis, moving along with Y1, for quick and easy clamping of metal sheet. |
| Pneumatic blowing system. |
| Automatic air blowing system to blow away the debris on the table |
