China Automatic Plastic HDPE PP PVC Toy, Bottle, Bucket Canister Container Extrusion Making Blowing Blow Molding/Moulding Machine

US$47,500.00-60,200.00 1 Piece (MOQ)

Basic Info.

Model NO.
PXB90D
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Extrusion System
Hard Gear Surface Decelerator + Japan Inverter
Auto Deflashing
Available
Total Weight
8.0t
Output(Dry Cycle)
320 * 2 PC/Hr
Die Head Option
Single, Double, Tri-Head, Tetra-Head
Transparent Line
Available
Production Usage
Bottle, Toy, etc
Multi-Layer
Available
Moog
100 Point
Average Energy Consumption
31kw
Transport Package
Film Packing with Wooden Bottom
Specification
Max capacity 12L
Trademark
Puxin
Origin
Suzhou
HS Code
847730100

Product Description


PXB90D
5L - 12L Double Station Blow Molding Machine
Special Feature:
- High Speed Double Station For HDPE, PE, PP, PS Material Product
- Double Capacity with Energy Saving
- Perfect Usage for 5L - 12L Bottle, Toy, Jerry Can, Container
- Optional Transparen Line
- Quick Action Speed, Stable Running
Configuration List
PLC MITSUBISHI Japan
Touch Screen HITECH Taiwan
Inverter MITSUBISHI Japan
Power Supply MEAN WELL Taiwan
Relay OMRON Japan
Hydraulic Valves YUKEN Japan
Hydraulic Pump YUKEN Japan
Contactors LS(LG) Korea
Solid relay FOTEK Japan
Breaker LS(LG) Korea
Temperature Control Module MITSUBISHI Japan
Oil Sealing DZ Taiwan
Oil Tube LIEBAO Taiwan
Transducer GEFRAN Italy
Proximity Switch SONON China
Motor SIEMENS China

Basic Equipment

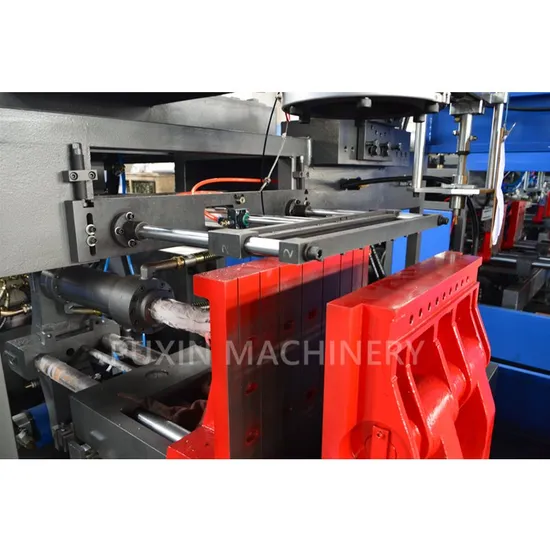

Clamping system Double Station+High-precision guide+large arm cylinder axle
Extrusion System Hard gear surface decelerator+Japan inverter
Die system Center -incoming extrusion die with special steel
Hydraulic system Japan hydraulic valve seal and proportional control
Control system Japan PLC+Imported+PLC automatic temperature control model+Imported electrionic parts

Parameters

Specifications
Material PE,PP, PVC, PA...
Max container capacity L 12
Number of die Set 1, 2, 3, 4
Output(dry cycle) Pc/hr 320
Machine Dimension(LxWxH) M 4.5x3.5x2.9
Total weight T 8.0
Clamping Unit
Clamping force KN 95
Platen opening stroke mm 200-600
Platen size mm 550x460
Max mould size(WxH) mm 550x430
Mould thickness mm 210-330
Power
Max drive KW 67
Total power KW 78
Fan power for screw KW 0.6
Air pressure MPA 1.0
Air consumption M3/min 0.9
Average energy consumption KW 31
Extruder unit
Screw diameter mm 90
Screw L/D ratio L/D 24
Melting capacity Kg/hr 130
Number of heating zone zone 4
Extruder heating power KW 21.4
Extruder driving power KW 37
Die
Number of heating zone zone 3
Power of die heating KW 5.7
Max die-pin diameter mm 180
Center distance of double die mm 250

Delivery Time:
- No later than 45 days after receipt of the deposit
Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).
Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.
Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.
Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.
