Basic Info.
Suitable for
Recycled Material, Wood, Paper
Paper Thickness
Thick Paper
Raw Material
Waste Carton Paper,Waste Paper
Finished Products
Corrugated Paper, Kraft Paper
Product Type

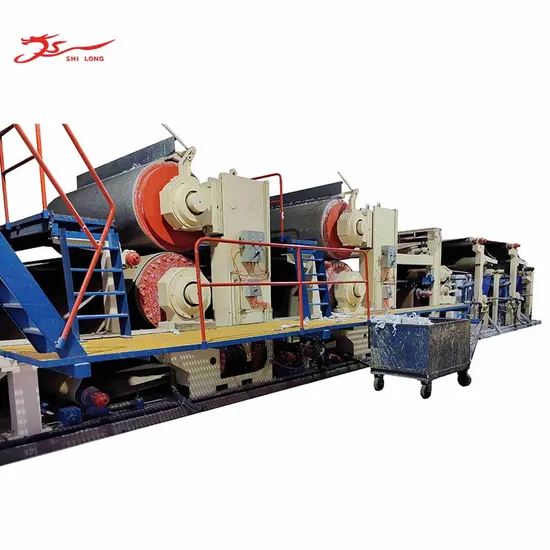

Kraft Paper Making Machine
Working Speed
60-80 M/Min
Showroom Location
Egypt, Viet Nam, Pakistan, Russia, Morocco, Algeri
Drive Way
AC Frequency Conversion
Transport Package
Container Packaging
Production Capacity
120 M/Min
Packaging & Delivery
Package Size
3000.00cm * 600.00cm * 550.00cm
Package Gross Weight
300000.000kg
Product Description
Company Profile
>> ABOUT US
Qinyang Jindelong Paper Making Machinery Factory is located in Henan province, China. Which is the Chinese Advanced Leader & Manufacturer, specializing in the pulp and paper industry for more than 30 years. From process design, equipment manufacturing, factory design to installation, commissioning and training, we can provide a full range of products.
>> CERTIFICATION
>> WORKSHOP
Business Show
>> COOPERATION CASE
From 2007 to the present, with decades of processing and export experience, our factory has projects in many overseas countries, including customers in the Middle East, Africa, Central Asia, Europe and other countries, and has more than 80 production lines around the world.
Because of the excellent quality of our products, we have won the trust and new orders of many new and old customers. Product Parameters
>> PARAMETERS
Model | SL-1575 | SL-1880 | SL-2400 | SL-2880 | SL-3200 | SL-3800 |
Paper width (mm) | 1575 | 1880 | 2400 | 2880 | 3200 | 3800 |
Capacity (t/d) | 5-10 | 15-40 | 30-40 | 45-60 | 50-80 | 100 |
Design speed (m/min) | 100 | 120 | 120 | 150 | 200 | 300 |
Working speed (m/min) | 50-80 | 60-100 | 60-80 | 80-120 | 150-180 | 150-250 |
Raw material | Waste paper, wood pulp |
Paper weight (gsm) | 80-250 g |
Customized on demand |
All our kraft machine model and available machine type: 1092, 1575, 1760, 1880, 2000, 2100, 2400, 2640, 2880, 3200, 3600, 3800, 4200 , 4400, 4800, 5200, 6000 (mm)...... Detailed Photos
>> PRODUCT PHOTOS
>> RELATED PRODUCTS
No. | Name | Function |
1 | Forming wire | Extract the pulp fiber to felt |
2 | Alloy dryer cylinder | Dry the wet paper |
3 | Double-layer dryer hood | Cover dryer and collect the hot&moist air diffused by dryer |
4 | Axial-flow ventilator | Ventilate and pull out the hot&moist air in the exhaust hood |
5 | Roots vacuum pump | Provide vacuum force for suction box |
6 | Air compressor | Provide compressed air for pneumatic devices |
7 | Frequency conversion controlling cabinet | Control the speed of the machine |
8 | Vacuum suction box | Absorb water contained in the wet paper |
9 | High concentration hydrapulper | Break the waste paper into pulp |
10 | High frequency vibrating screen | Separate and remove large impurity in the pulp |
11 | Impeller | Stir pulp and keep pulp well-mixed with water |
12 | Pressure screen | Getting ride of impurities |
13 | Bleacher | Bleach and whiten pulp |
14 | Double disc refiner | Grind, refine and fibrillation |
15 | Low concentration sand remover | Remove sand and impurities |
16 | Pulp pump | Pulp transportation |
17 | Electrical operation cabinet | Control machine operation |
18 | Boiler | Provide steam for the drying section |
Raw Material&Finished Products
>> RAW MATERIAL
>> FINISHED PAPER
Packaging & Shipping
>> PACKING & SHIPPING
Large machines are different from small machines. Their export packaging is stricter than small products. In order to avoid collisions during transportation, we wrap the outer layers of the machine with wood chips and wrap them in plastic film. In order to save space in the container, we package the sporadic parts together. Installed in a spare place in the container.
