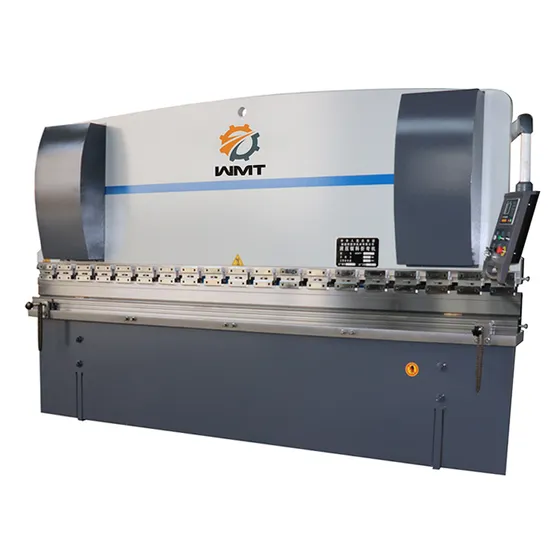

Hydraulic Press Brake Machine Wc67y 125/3200 with CE standard

Product Description

FEATURES:
All steel welded structure, stress relieved for high rigidity and stability.
Torsion shaft forced synchronization of mechanical limit stopper balance,with high precision.
Integrated hydraulic transmission system,large range of speed regulation thanks to transmission of the sliding block, stable and reliable performance.
Rear stopper and the sliding block have electrical adjustment for the stroke,with manual fine tuning,and digital indication.
Adjustment mechanism of sliding block independent from oil cylinder assembly to enhance sealing effect of upper punch retainer is fitted with tilting warp offset mechanism.
For bending machine from 250Tup synchronization mechanism of mechanical or electrical hydraulic transmission is fitted, lower working table is fitted with warp offset mechanism.
Multi-machine combined operation is possible.
Main Specification:

MODEL	Nominal pressure	Length of worktable	Distance between uprights	Ram stroke	Throat depth	Motor power
	kn	mm	mm	mm	mm	kw
WC67Y-40/2000	400	2000	1590	100	200	5.5
WC67Y-40/2200	400	2200	1590	100	200	5.5
WC67Y-40/2500	400	2500	2090	100	200	5.5
WC67Y-50/2500	500	2500	1900	120	250	5.5
WC67Y-50/3200	500	3200	2600	120	250	5.5
WC67Y-63/2500	630	2500	2050	100	250	5.5
WC67Y-63/3200	630	3200	2600	100	250	5.5
WC67Y-80/3200	800	3200	2600	100	250	5.5
WC67Y-80/4000	800	4000	3200	100	250	7.5
WC67Y-100/2500	1000	2500	1900	120	320	7.5
WC67Y-100/3200	1000	3200	2600	120	320	7.5
WC67Y-100/4000	1000	4000	3200	120	320	7.5
WC67Y-100/5000	1000	5000	4000	120	320	7.5
WC67Y-125/2500	1250	2500	2050	130	320	7.5
WC67Y-125/3200	1250	3200	2600	130	320	7.5
WC67Y-125/4000	1250	4000	3200	130	320	7.5
WC67Y-125/5000	1250	5000	4000	120	320	7.5
WC67Y-160/3200	1600	3200	4800	200	320	11
WC67Y-160/4000	1600	4000	2600	200	320	11
WC67Y-160/5000	1600	5000	3200	200	320	15
WC67Y-160/6000	1600	6000	4000	200	320	15
WC67Y-200/3200	2000	3200	4800	200	320	15
WC67Y-200/4000	2000	4000	2600	200	320	15
WC67Y-200/5000	2000	5000	3200	200	320	15
WC67Y-200/6000	2000	6000	4000	200	320	15
WC67Y-250/3200	2500	3200	4800	200	320	18.5
WC67Y-250/4000	2500	4000	2600	250	400	18.5
WC67Y-250/5000	2500	5000	3200	250	400	18.5
WC67Y-250/6000	2500	6000	4000	250	400	18.5
WC67Y-300/3200	3000	3200	4800	250	400	22
WC67Y-300/4000	3000	4000	3200	250	400	22
WC67Y-300/5000	3000	5000	4000	250	400	22
WC67Y-300/6000	3000	6000	4800	250	400	22
WC67Y-400/4000	400	4000	3200	320	400	22
WC67Y-400/5000	400	5000	4000	320	400	22
WC67Y-400/6000	400	6000	4800	320	400	22

---
