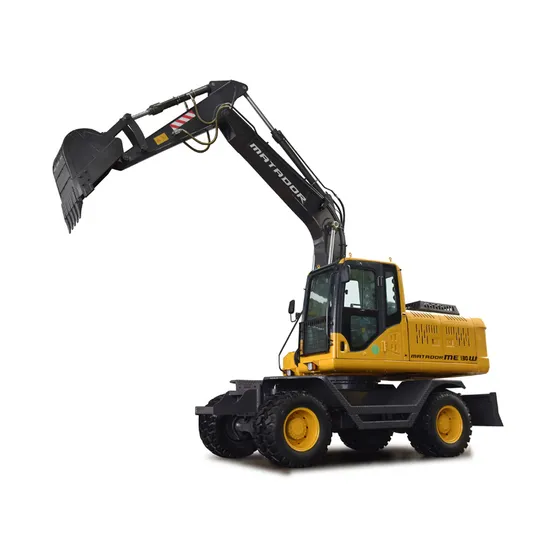

Construction Machinery Jg130s 13 Tons Digger Wheel Excavator Ditch Digging Machine Sale

Product Description

All of our products are CE marked and our design and manufacturing systems are approved to ISO9001, so you can be sure that quality, reliability, and safety are built into everything we manufacture.
Our company abides by the business philosophy of "quality first, customer first" to ensure product quality. We have rigorous production procedures, and each production process is carried out under strict quality inspection.Only after passing the inspection can they move on to the next procedure. At the same time, we insist on creating a neat, clean and safe working environment.

SPECIFICATIONS
RANGE OF OPERATION			Boom length				4200mm
			Arm length				2000mm
			Maximum Digging Reach				7200mm
			Maximum Digging Depth				4100mm
			Maximum Digging Force				90KN
			Maximum Digging Height				8000mm
			Maximum Dumping Height				6000mm
			Back-end radius of gyration				2250mm
DIMENSION			(Length*width*height) travel position				7200*2500*3000mm
			Wheel base				2750mm
			Track(Front/rear)				1900mm
			Ground clearance of counterweight				1260mm
			Min ground clearance				310mm
TECHNICAL PARAMETERS			Angle of rotation				360°
			Machine weight				12500kg
			Engine model				Cummings 4BTAA3.9
			Rated Power				93KW
			Rated Speed				2200r/min
			Hydraulic system working pressure				28Mpa
			Hydraulic system flow				270L/min
			Metering gear pump				2*63ml/r
			Max Hauling force				76.5KN
			Walking speed				25km/h
			Grade Climbing ability				58%/30°
			Tyre model				900.20
			Volume Of Bucket				0.4-0.5m3
			Fqt Fuel Quantity				≥6L/h
			Capacity Of The Fuel Tank				200L
			Hydraulic Tank Capacity				200L

We are a leading manufacturer and exporter of wheel excavators, crawler excavators, sugarcane harvesters, sugarcane grab loaders, multi-function excavators. We have nearly 20 years of professional experience, and our products have been exported to many countries.
We provide more optional parts to complete more kinds of work. We provide a variety of work tools such as grabs, forks, pulverizers, etc. to meet your various application needs. In addition, a variety of fixtures are provided to optimize the performance of the machine. The auxiliary hydraulic lines are arranged on the base of the boom, making the auxiliary hydraulic circuit easier to install, thereby reducing the time, parts and costs required for installing work tools.

---
