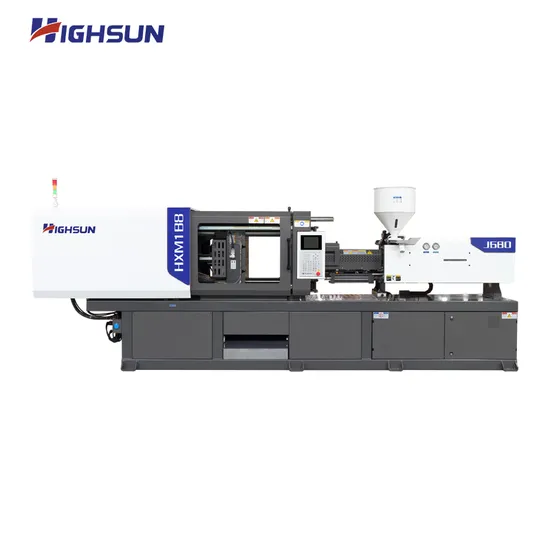

Injection Molding Machine Hxm188 for Production of Multi-Colored Egg Basket

US$18,000.00-565,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HXM188
Type
Plastic Injection Molding Machine
Structure
Horizontal
Plastic Type
PS, ABS, PP, PE, HDPE, PA, EVA
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Energy Saving
Servo Energy Saving
After Sakes Servuce
Engineers Available to Service Machine
Voltage
380V/50Hz, According to Countries
Showroom Locate
Malaysia, Russia, Turkey, Uzbekistan
Condition
New
Injection Weight
330g PS
Space Between Tie Bar
510X460
Machine Weight
5.2 Ton
Moving Mould-Plate Stroke
450 mm
Transport Package
Standard Package
Specification
6.50x1.75x2.08
Trademark
Highsun
Origin
China
HS Code
8477101090
Production Capacity
7000 Sets / Year

Product Description

1.Picture
MODEL:HXM188
TECHNICAL PARAMETER TABLE A B C
INJECTION UNIT SCREW DIAMETER mm 40 45 48
SCREW L/D RATIO L/D 24.7 22 20.6
INJECTION CAPACITY IN THEORY cm3 282 358 407
INJECTION WEIGHT(PS) g 262 330 378
oz 9.24 11.6 13.3
INJECTION PRESSURE MPa 224 176 155
INJECTION RATE g/s 100 126 144
PLASTICIZING CAPACITY g/s 14 19 23
SCREW SPEED rpm 190
CLAMPING UNIT CLAMPING FORCE KN 1880
MOVING MOULD-PLATE STROKE mm 450
MAX. MOULD HEIGHT mm 530
MIN. MOULD HEIGHT mm 180
SPACE BWTWEEN TIE-BARS (W×H) mm 510x460
HYDRAULIC EJECTOR FORCE mm 53
HYDRAULIC EJECTOR STROKE KN 130
EJECTOR NUMBER n 5
OTHERS PUMP PRESSURE MPa 16
MOTOR /DRIVING POWER KW 15/18.5
HEATING CAPACITY KW 12.95
MACHINE DIMENSION (L×W×H) m 5.39x1.29x2.05
MACHINE WEIGHT t 5.2
OIL TANK CAPACITY L 272

2.Application
3.Processing,assembling production line
5.Loading containers
6. Customer case
Client in China produce shoe for many famous companies
7.Client in Malaysia
