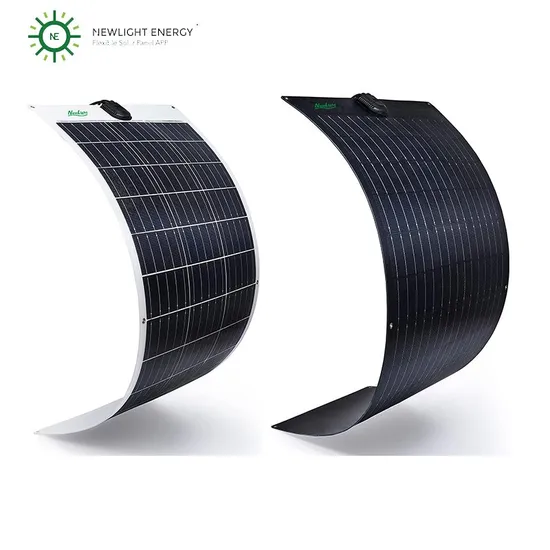

Factory Direct Supply Flexible Solar Panel for Trailer Caravan Marina Roof

Product Description

Product Description
customized perc flexible solar panel good for rvs, solar bus, solar car, solar truck, solar caravan and marine industries, solar boat, solar yacht, solar sailing etc.
Description:
The flexible solar panel is super thin, semi-flexible, lightweight, and Portable to carry. The ETFE surface material is more durable than PET. ETFE flexible solar panel has 95% transparency and offers excellent efficiency in terms of light-to-electricity conversion. And it has non-adhesive surface properties, is highly stain-resistant, and easily gets cleaned by the rain. Our ETFE material is also environmentally friendly and recyclable.
Applications:
The flexible solar panel can be used to charge an electric car, electric bike, boat, power bank, etc. or you can take it to travel, or outdoor camping. It has a wide range of DIY mounting applications.
They can be easily fixed to your canopy, car roof rack, bike, trailer, caravan, or even boat, these panels offer enough flex to be mounted on curves or uneven surfaces.
Feature:
1. Semi-flexible: bending angle up to 25 degrees;
2. TPT back sheet optional, no glass;
3. High conversion efficiency 23%~25% monocrystalline solar panel;
4. The thickness is about 3mm, it can be adjusted the thickness for your need, easy joint to your yacht or RV roof;
5. Lightweight to carry;
6. Lifetime is more than 25 years;
7. Offer warranty;Below some datasheet of PERC flexible solar panel for reference, it is customized according to customer needs.

No.	Power (W)	Matrix ( solar cell)	Vmp (V)	Imp (A)	Voc (V)	Ics (A)	efficiency (%)	Dimension(mm) Junction box Back or Front	Thickness(mm) without back glue	Weight about(kg) without back glue
1	55W	182 solar cell (4*2)	8.96	6.13	10.75	6.63	23-25%	Back L*W: 765*395 Front L*W: 785*395	3mm	0.95
2	85W	182 solar cell (4*3)	13.44	6.33	16.12	6.83		Back L*W: 765*585 Front L*W: 785*585		1.67
3	115W	182 solar cell (4*4)	17.92	6.45	21.50	6.95		Back L*W: 765*765 Front L*W: 795*765		2.22
4	140W	182 solar cell (5*4)	22.40	6.27	26.88	6.75		Back L*W: 960*765 Front L*W: 980*765		2.75
5	155W	166 solar cell (9*3)	30.24	5.13	36.28	5.56		Back L*W: 1580*550 Front L*W: 1600*550		3.25
6	180W	182 solar cell (5*5)	28.0	6.44	33.60	6.94		Back L*W: 960 *960 Front L*W: 980*960		3.50
7	215W	182 solar cell (6*5)	33.60	6.40	40.32	6.94		Back L*W: 1140*960 Front L*W: 1160*960		4.12
8	250W	182 solar cell (7*5)	39.20	6.40	47.04	6.94		Back L*W:1325*960 Front L*W: 1345*960		4.75
9	285W	182 solar cell (8*5)	44.80	6.40	53.76	6.94		Back L*W: 1510*960 Front L*W: 1530*960		5.35
10	300W	166 solar cell (9*6)	30.0	10.10	36.0	10.50		Back L*W: 1550*1050 Front L*W: 1570*1050		6.02
11	320W	182 solar cell (9*5)	50.40	6.35	60.48	6.85		Back L*W: 1695*960 Front L*W: 1715*960		6.10
12	355W	182 solar cell (10*5)	56.0	6.35	67.20	6.85		Back L*W: 1880*960 Front L*W: 1900*960		6.75
13	430W	182 solar cell (10*6)	67.20	6.40	80.64	6.91		Back L*W: 1880*1140 Front L*W: 1900*1140		8.05
14	460W	210 solar cell (8*6)	53.76	8.68	63.6	9.11		Back L*W: 1735*1300 Front L*W: 1750*1300		8.50
15	500W	182 solar cell (10*7)	78.40	6.38	94.08	6.37		Back L*W: 1880*1325 Front L*W: 1900*1325		9.25

Detailed Photos
Company Profile
Welcome to XIAMEN NEWLIGHT ENERGYOur holding company is leading of solar light Wrap pole with flexible PV and flexible solar panel manufacturer, total building 38500 square meters base at Southern and Northern area in China, with 10 pieces Flexible solar panel laminated equipment, 8 pieces LED lamp assemble lines, all products under test equipment before release to market, good quality guaranty.
Exhibition
Business & Project Partners
FAQ
(1)Can you do OEM for my panels ?
Yes,we support OEM and ODM ,We can make the solar panel dimension and voltage according to the customer requirment .
(2)What is the lead time?
It will take about 7-30 days for production depending on the quantity.
(3)Are you a factory or a trading company?
We have ourself big factory,holding export permits and relevant certificates.
(4)How does your factory conduct quality control?
Quality is of utmost importance. We have a professional quality control team to oversee the quality.
(5)What advantages do you have in the solar energy system field?
Our automated production lines are equipped with internationally advanced production equipment from Japan and Germany. We provide high quality products and excellent services.

---
