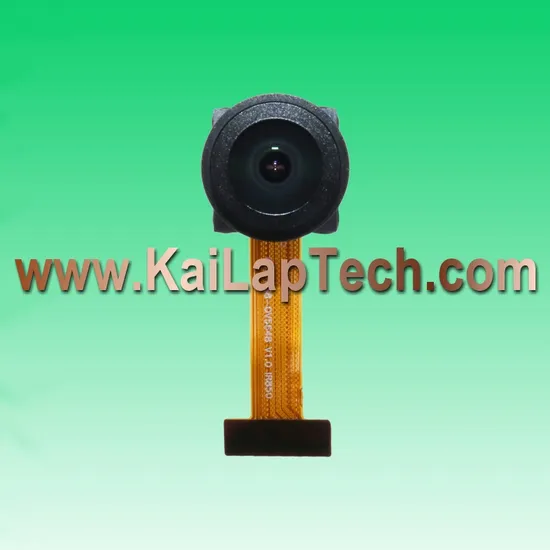

Klt-Ks8-Ov5648 V1.0 IR850 WiFi Camera 5MP Ov5648 Mipi Interface M12 850nm Dual Pass Fixed Focus Camera Module

Product Description

5MP OV5648 MIPI Interface M12 850nm Dual Pass Fixed Focus Camera Module
Camera Module No. KLT-KS8-OV5648 V1.0 IR850

Camera Module No.	KLT-KS8-OV5648 V1.0 IR850
Resolution	5MP
Image Sensor	OV5648
Sensor Type	1/4"
Pixel Size	1.4 um x 1.4 um
EFL	2.25 mm
F.NO	2.20
Pixel	2592 x 1944
View Angle	130.0°(DFOV)
Lens Dimensions	13.40 x 13.40 x 17.67 mm
Module Size	40.00 x 14.00 mm
Module Type	Fixed Focus
Interface	MIPI
Auto Focus VCM Driver IC	None
Lens Model	KLT-LENS-YT-1559-A1
Lens Type	650nm IR Cut + 850nm IR Pass
Operating Temperature	-30°C to +70°C
Mating Connector	FH12-24S-0.5SH
