Product Details
Product Description
Product Description
Basic Info.
Model NO.
HP-PT200-21*10
Hull Material
Steel
Customized
Customized
Certification
PTI, CSC, CE, ISO
Max Pay Load
<5000ton
Self Propelled
Yes
Type
Cargo Barge
Condition
New
Structure
Dismountable
Capacity(Max Pay Load)
200ton
Hull Materials
CCS Marine Steel Plate
Transport Package
in 40hq Container
Specification
200Ton
Trademark
HENGPENG
Origin
Shandong, China
HS Code
89051000
Production Capacity
100/Set
Product Description
Modular Pontoon Excavator Transportation Carrier Made in Heng Peng Shipyard
Tag:
Dredging 100% Full Hydraulic Excavator Transportation Carrier Barge with High Efficiency Diesel Engine
excavator barge, excavator floating pontoon, excavator transportation platform
deck pontoon, floating pontoon, crane carrier barge
1. Introduction
Hengpeng Shipyard designed, customized, and built modular platforms include:
Max load capacity: 50~800ton
Self-Propeller: euipped with or no
Hydraulic Spuds: customized 3/4
Dredging Depth: it is determined according to the specific working conditions
The working ares are suitable in River Channel / Lake / Port Dredging Engineering Construction.
Function is supporting excavator and crane to work in river areas with loading capacity of 50~800 tons,and it can transport Heavy Equipment /Trucks /Steels/Project Cargo/Passenger for short distance transportation. 4 hydraulic spuds can be installed,the position of 4 positioning spuds can be effectively selected, and better for installation, which makes the hull more stable after installation.
With a successful standardized design and 35+ years of dredging manufucture production capacity, Hengpeng Shipyard can quickly advise you the type of equipment you need to load, and then we can design and process it very quickly.
About Heng Peng modular floating platforms
1.Hengpeng Modular Pontoon Excavator Transportation Carrier, functional diversity:
SPUD Modular dredger/Floating Working Pontoon barge/Excavator platform Carrier, backhoe dredging vessel, for dredging operations in inland river/ lake / ports areas, with a split structure, flexible movement, simple operation, adapt to various types of excavators and working conditions # Floating Pontoon # Excavator Carrier # Construction Site # Professional manufacturer
2.Hengpeng Water Floating Working Platform Excavator Carrier, source entity manufacturer:
In many river and reservoir dredging and expansion projects, there may be a large amount of original underwater materials such as pebbles and stones, and ordinary dredger cannot meet the dredging requirements! At this point, an excavator is usually needed, and the equipment that works with the excavator on the water surface is called a floating working platform, or a SPUD Carrier. It has the characteristics of high buoyancy, high strength, and stable operation, which can help excavators carry out various operations on the water surface # Water Excavator Ship # Three piece SPUD Excavator Barge # Excavator Mining Barge Platform .
3.Hengpeng Excavator Floating Working Platform, original river channel dredging equipment:

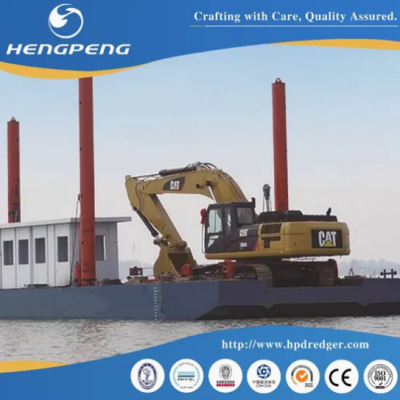

This type of excavator transportation carrier is used to directly loaded the excavator on the deck of carrier and excavate with an extended arm to backhoe dredging. After arriving at the workplace, the SPUDS will automatically fall, and the excavator can work 180 degrees on any fan-shaped surface on the platform, with flexible movement and high structural strength.
2. Specification
Take a closer look at the entire range of products
(Modular Pontoon Basic Technical Specifications )
| Technical Specifications Details |
|
|
|
| Model | HP-PT 200 |
|
| Product Name | Modular Pontoon Excavator Transportation Carrier Barge |
|
| Type | Floating Working Pontoon with Spuds / Modular Design Heavy Equipment Carrier Logistic Barge / Excavator Platform Carrier/ Floating Working Platform/ Spud Platform Project Carrier/ Pontoon Carrier /Pontoon Barge |
|
| learn more about | learn more about |
| Capacity(Max Pay Load) | 200Ton | customized, 50Ton--800Ton |
| Structure | Dismountable, loaded into containers for convenient land transportation,connection is by Bolts at jobsite |
|
| Total Length | 21M | customized |
| Hull Width | 10M | customized |
| Hull Depth | 1.8M | customized |
| Dredging Depth | 7M | customized |
| Self-Propeller | Yes | customized |
| Tonnage |
|
|
| Excavator Model | Caterp /Komatsu Excavator | customer provide Excavator/ Crane |
| Control system | 1 set of Siemens PLC Control System, Full Hydraulic System |
|
| Spuds | 3,Triangle positioning to maintain the stability of the floating body |
|
| Engine | Weichai/Cummins | customized |
| Generator | 12KW |
|
| Hull Materials | CCS Marine Steel Plate |
|
| Application/Mining Object | * to support a excavator stable safely working on the deck of floating pontoon in rivers/lakes/port/sea, conduct backhoe dredging in water.
* it is a special design to support excavator working in water for hard layer dredging project,that general dredger can not easy to dredge.
*dredging work in water/sand mining dredging/ dredging salt in high salinity lak
*it can transport Heavy Equipment /Trucks /Steels/Project Cargo/Passenger for short distance transportation
|
|
* It can be customized according to different application scenarios and actual transportation needs of customers
3. Our Advantages
1. High Quality and High Stardard : One set Full Hydraulic Functions easy to operation,CCS Thick Marine Steel Plate,Marine Design Institute responsible for designing drawings,comply with ISO 9001 2015 International standardized quality management standards
2.Multi-purpose floating platform : Working Pontoons Platform can support excavator to conduct backhoe dredging in inland river, lake areas.
The Work Platform supports customized housing according to customer needs, which can be used for Office Working, Accommodation, Living Space, and other purposes, Providing a comfortable accommodation environment can effectively ensure the quality of employee rest. It has high variability, flexibility, and durability to adapt to different needs.
3.Strength and durability : The Hull Is Made Of CCS Marine Steel Plate, Which Is Durable, with advantages of high stability, strong structure, easy maintenance.
4.Convenient and flexible assembly and transportation : The hull can be Dismountableand loaded into containers for convenient land transportation. Workers will be dispatched to the construction jobsite for guiding the installation assembly and testing.
5. Stability :This kind of excavator carrier is suitable for small and medium size project, driven by diesel and hydraulic system,controled by electricity. 3 spuds are layed in triangle postion to keep the stability fo the pontoon .
4. Features
1. Designed for Excavator River dredging works
2. To support excavator to conduct backhoe dredging in inland river/lake /port areas.
3. For River/Lake Sand Mining Dredging; During the dredging of reservoirs, there are many underwater materials in the original river channel, such as pebbles and stones.; Port dredging operations; Navigation engineering construction; Multi functional water management machinery - garbage salvage.
4. Short distance transportation of goods ,for transport Heavy Equipment /Trucks /Steels/Project Cargo could be loaded on the deck.
5. After Sales Service
1. Lifetime Technical Support, provide technical guidance on engineers usage and other aspects according to consumer requirements
2. 24-hour service response mechanism
3. Making an excellent filing of customers for long-term following-up service.
4. All the dredgers can be Customized.
5. Field Installation,commissioning,and training by our engineers
6. Provide professional service and providesolution in a timelymanner.
7. 12 months free warranty, free repair services,.
8. Sending engineers to assemble and test the machine within theperiod as agreed in the contract.
9. Ensure the supply of maintenance spare parts, and shipyard warehouse inventory of dredger/barge parts can quick and efficient supply in a short period of time;
