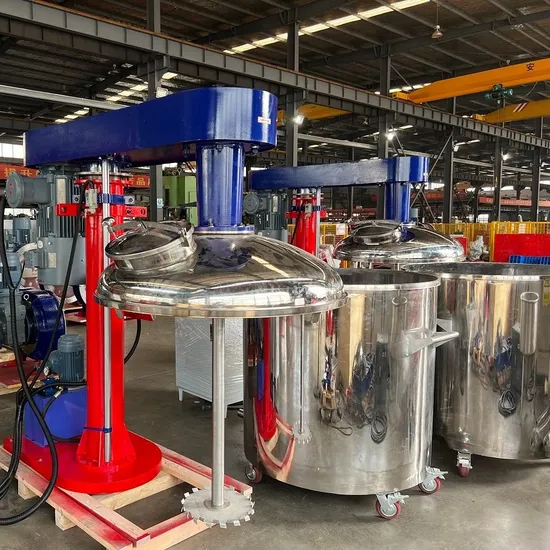

Hydraulic Lifting Vertical High Speed Shear Disperser for Emulsion Paint Production

Product Description

Hydraulic lifting.Reliable frequency rotation speed control for various producing materials.360 degrees can be achieved for the convenient producing position.Equipment materials which touch the processed material: SS304/316L.Mixer shaft: single shaft/ double shaft/ customized.Mixing tank: single layer/ jacket heating/ jacket cooling/ vacuum system.Ex-proof system can be optional as required.

Model	Capacity(L)	Power(kw)	Speed(rpm)	Dispersing sisc(mm)	Lifting distance(mm)	Hydraulic Power(kw)
HFL-4	<200	4	0-1450	200	850	0.75
HFL-7.5	<400	7.5	0-1450	230	850	1.1
HFL-11	<500	11	0-1450	250	1000	1.1
HFL-15	<700	15	0-1450	280	1000	1.1
HFL-18.5	<800	18.5	0-1450	300	1200	2.2
HFL-22	<1000	22	0-1450	350	1200	2.2
HFL-30	<1500	30	0-1450	400	1200	2.2
HFL-37	<2000	37	0-1450	400	1200	2.2
HFL-45	<2500	45	0-1450	450	1500	2.2
HFL-55	<3000	55	0-1450	500	1500	2.2
HFL-75	<4000	75	0-960	550	1800	3
HFL-90	<6000	90	0-960	600	1800	3
HFL-110	<8000	110	0-960	700	2200	3

Why choose Huayun as partner?
Huayun specialized in fluid equipment for more than 20 years and we have 15000m2 factory.
Huayun manufacture all parts by ourselves and we can insure the quality of all parts.

---
