US$50,000.00-60,000.00
|
1 set
(MOQ)
|
Basic Info.
Guide Rail
Horizontal Guide Rail
Controlling Mode
Artificial
Certification
CE, ISO 9001
Max. Turning Diameter
2000mm
Max. Workpiece Height
2000mm
Max. Workpiece Weight
5000kg
Tool Shank Section
40X50mm
Transport Package
Plywood Packing
Specification
Overall size: 2360X2270X2800mm
Trademark
Dalian ZT Machinery
Production Capacity
500 Sets/Year

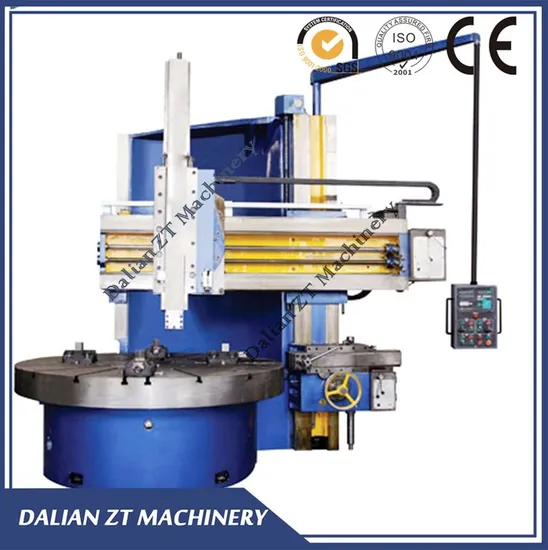

Product Description
Workpiece: Valve, pump, auto parts; ring, flange, shell parts
Function: Turning, grooving, drilling, tapping, reaming
Main Technical Parameters:
| Item | Unit | C5120 |
| Max. turning diameter | mm | 2000 |
| Worktable diameter | mm | 1800 |
| Max. workpiece height | mm | 1250 |
| Max. workpiece weight | t | 8 |
| Max. worktable torque | KN.m | 40 |
| Worktable speed(16 steps) | r/min | 3.2-100 |
| Max. cutting force of vertical tool post | KN | 22 |
| Max swivel angle of vertical tool post | ° | ±30° |
| Tool post feed rate (12 steps) | mm/min | 0.8-86 |
| Transverse travel of vertical tool post | mm | 1015 |
| Ram travel of vertical tool post | mm | 800 |
| Rapid movement of tool post | mm/min | 1800 |
| Up/Down speed of cross beam | mm/min | 440 |
| Tool shank section (WxH) | mm | 30×40 |
| Main motor power | KW | 30 |
Standard Accessories:
| Name | Q'ty |
| Chuck jaw | 4 sets |
| Tool holder | 1 pc |
| Tool shank | 1 pc |
| Spanner for tool post | 1 pc |
| Spanner for chuck | 1 pc |
| Ring spanner 36 | 1 pc |
| Oil gun | 1 pc |
| Anchor bolt | 7 sets |
| Machine pad | 8 pcs |
PACKING, FIXING & DELIVERY:
CUSTOMERS' VISITING:
FAQ
1. MOQ
1 set
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.
3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.
>>
