1000d 1500d Aramid Filament Excellent Thermal-Stability High-Temperature Resistance PARA Filament Yarn

Product Description

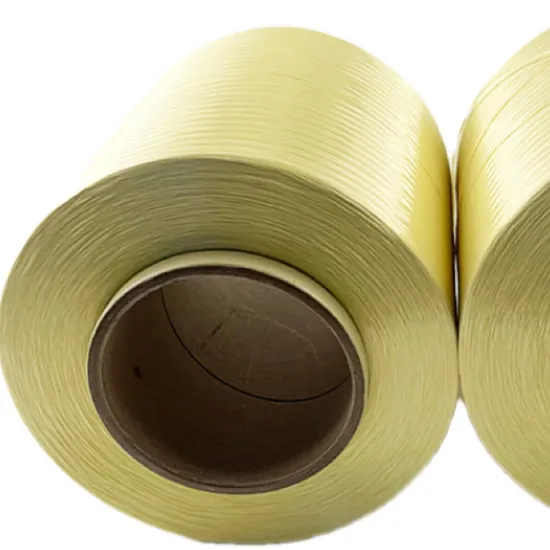

Para Aramid Filament
Para Aramid Filament is para-aramid fiber made of PPTA polymer. It is yellow, low-density and high-strength. Its strength-to-weight ratio is 6 times higher than steel. Therefore para-aramid fiber is widely used in tyre, optical cable, ballistics, high-speed rail and aerospace field.Our filament yarn also has low flammability and excellent thermal stability, enabling its mechanical strength decay within 20% under 200°C. Which is important in heat protection, friction and sealing fields.
Technology Parameters

T-FL006 (High Elongationat)
Linear Density		Filament Count	Tenacity		BreakingForce	Elongationat Break	Y.Modulus		Fresh
denier	dtex	ea	g/d	cN/dtex	N	%	g/d	Gpa	%
1000	1100	666	23	21	230	4.0-4.5	660	84	0.8-1.2
1500	1670	1000	23	21	340	4.0-4.5	660	84	0.8-1.2

Aramid Filament Feature	Aramid Filament Main Application
High strength-to-weight ratio; Heat and chemical resistance; Flame retardant and fireproofing; Cut resistance and tenacity; Electrical insulation;	Optical cable; Bulletproof, woven/UD fabric; Ropes, conveyor belts, bags; Sealing of pump shaft; Tire cord, hose, RTP pipe;

Storage and Package
Storage
Para Aramid Filament yarn should be kept dry in original bags and properly stocked.Preferably store at room temperature with 35-65% relative humidity.Avoid the sun, rain and fire.
Packaging
1. Each bobbin packed in black plastic film bag Net weight: 5.00kg
2. 23 bobbins per layer and 3layers per carton. Carton size: 110*110*95cm Net weight: 345.00kg, Gross weight: 445.00kg
3. Shipment by sea: Generally 20 pallets can be loaded into 20 feet container with total net weight of 6,900kg.
FAQ
1.What Kind of Company are We?
Shanghai Gengyun Industrial Co., Ltd., based on the development of technology forum OF telecom optical&electric cable equipment and materials(TOEM), is mainly engaged in investment, trade, and technical services in the field of telecom optical & electric cable.
We provide our customers with complete materials demand solutions, as well as overall solutions and customized services in factory design, equipment configuration, product development and raw material supply.
2.Is Our Product Single?
We have quite a wide variety of products.
Our products contain raw materials for optical fiber & cable, telecommunication cable include PE, PVC, FRP, PBT, water blocking yarn, water blocking tape, optical fiber ink, optical fiber, steel plastic composite tape, aluminum plastic composite tape, aramid yarn, etc. and
equipment for cable manufacturing including high-speed fiber coloring and rewinding machine, fiber merging machine, fiber screening and rewinding machine, special fiber drawing machine, coating production line, high-speed cable forming production line. There are different models of products under each category, and customization is supported.
3.Are Samples Available?
For most raw materials and optical cables, we can provide samples, but you need to bear the shipping costs; for cable manufacturing equipment, we can provide factory test reports of various indicators
4.Why Choose Our Company?
Our company was established in 2008 and has 16 years of experience in the communications industry. We can provide professional optoelectronic cable solutions and support product customization. Our products and raw materials are 100% in line with industry standards. We have warehouses all over the country. Such as Shanghai, Jiangsu, Qingdao, Beijing and so on.
What We Have In The Field Of Telecom Optical & Electric Cable :
1>Mature and Efficient Supply Chain System And Rich Industrial Resources
2>Complete Materials Demand Solutions For Cable Manufacturing And Technical Services
3>Overall Solutions And Customized Services In Factory Design, Equipment Configuration, Product Development And Rawmaterial Supply
*Quotation Based On Customer's Requirements And Quantity Of Products

---
