Cost-Effective, High Quality High-Speed master-slave integrated BLE 5.2 Bluetooth module TS-M1036

Product Details

Product Description

Product Description

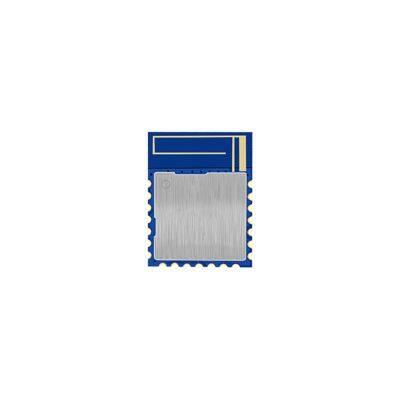

The TS-M1036 is a high-speed, master-slave integrated BLE 5.2 Bluetooth module, known for its exceptional stability and ultra-low power consumption. The module comes with a default Bluetooth serial port transparent transmission feature, and users can modify parameters such as serial port baud rates and device names using the provided AT commands, ensuring flexible and easy operation. This module excels with its excellent stability, ultra-low cost, minimal power consumption, and high reception sensitivity, making it suitable for a wide range of customer development projects.
Model No.: TS-M1036
Features
Bluetooth Version: BLE 5.2
Frequency Band: 2.402GHz-2.480GHz ISM band
TX Power: -20dBm~+12Bm
Receive Sensitivity: -96dBm
Air Rate: 250Kbps/1Mbps/2Mbps
Antenna: PCB Onboard
Advise Range: 100m
CPU: Embedded 32-bits Processor
Memory: 80KB RAM
Size: 17*13*2.3mm
Pin/GPIO: 21/13
Power Supply: 2~3.6V
Operating Temperature: -40℃~+85℃
Peripheral Interface: UART/SPI/I2C/ADC
Serial Transparent Transmission Rate: BLE 20KB/s
Applications
Smart home
Location tracking
Intelligent educational equipment
Measurement and monitoring system
Industrial sensors and controls
Medical equipment monitoring and wireless control

---
