Product Details
Product Description
Product Description

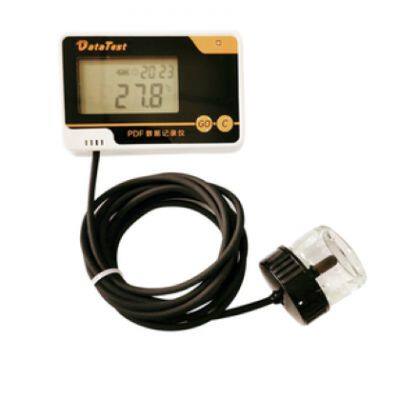

Reagent refrigerator special temperature meter temperature probe for the simulation of reagent liquid probe,
specifically to solve the refrigerator open the door over-temperature problem, but also targeted to accurately
monitor the reagent temperature changes.
Ⅰ. Product features:
1, the product is simple, beautiful and compact; USB interface, affordable recyclable, power-down data is not lost
2, the main function: it can be the whole automatic tracking and recording of pharmaceutical shade cabinets,
refrigerators, incubators, experimental equipment, incubators, thermostats, refrigerated transport trucks,
containers, and other environmental temperature changes, online display clock, temperature values, to achieve
the temperature exceeds the limit of the LCD speaker display / LED alarm light flashes / beeping alarm.
3, and the recorder shell integrated USB data cable design:
① convenient data export, no need to look for a separate USB data cable, can be directly connected to a laptop
mobile export PDF and EXCEL format data, MKT values
② Software operation instrument automatically connect, download and save data, easy to operate;
③ unique USB power supply design, even if the internal battery is dead can also download data normally;
4, long storage time: the example of 15 minutes to record data once, can store records for up to 18 months (standard).
5, liquid crystal display and LED lights alarm and beeping alarm mode, placed in the device to see flashing lights, you
can distinguish the temperature environment within the device is abnormal.
You can view the use of the process of the very large value of the very small value.
6, the entire circuit adopts low-power processing, the use of built-in disposable industrial lithium battery power supply.
Example: recording interval minute level, in the non-alarm state, the battery can continue to work for about a year.
7, the recorder adopts waterproof design, the connections are sealed ring and sealant, waterproof IP rating of IP67,
the recorder equipment will be completely immersed in water, water will not be immersed in the instrument and equipment.
8、Immediate start/timed start/manual start a variety of start-up options; delicate and compact plus manual start switching function.
Ⅱ. Technical parameters:
Performance/Parameters
| Temperature
|
Measuring range
| -30℃～50℃
|
Accuracy
| ±0.5℃ ( throughout )
|
Resolution
| 0.1℃
|
Sensor type
| Superior NTC (external sensor), probe wire: 2 meters
|
Total recording capacity
| 50000 data
|
Recording interval
| The shortest recording interval is 1 second, and you can choose to set the sampling recording interval by seconds, minutes, hours, days.
|
Display Refresh
| Real-time / Synchronized
|
Start mode
| Immediate start / Timer start / Manual start
|
Stop mode
| Until full / FIFO / Count stop / Timer end
|
Alarm Mode
| "LCD Alert" plus "LED Blinking" plus "Beep Alarm"
|
Power supply
| 3.6V industrial lithium battery, with a life of about one year
|
Logger software
| Chinese Simplified, Traditional, English version
|
Communication
| All-in-one USB cable
|
Support system
| Windows7 or above
|
Size
| L83×W52×H22 mm
|
Waterproof grade
| IP67 (within a certain period of time, completely placed in the water, water does not soak into the instrumentation)
|
Operating environment
| -20℃～70℃ (whole machine)
|
Liquid crystal display
| 45mm×25mm
|
>>
