Functional Dairy Beverage 4000L/H Milk Homogenizer Price Best Food Factory

Product Description

COMPANY PROFILE Shanghai Donghua High Pressure Homogenizer Factory firstly importing and applying the foreign advanced technology, has over ten years history of researching and manufacturing Donghua GYB serial high pressure
homogenizers and other supplementary equipments. The factory owns great engineering technological power and advanced researching inspection facilities, the quality of the high pressure homogenizer ranking top in China.
The factory is located in the West South Xiangyang Industry Park and possesses an area of more than 17,600 kilometers. The factory is clean and tidy, with delicate equipments and gracious environment, having a fixed asset of over 48,000,000 RMB.Because our products are manufactured in accordance with high-performance standards and strict safety regulations, many of the world's leading manufacturers are Donghua customers, such as VIVI Group, Bright Dairy Group and Dazai Beverage Co., Ltd. Our homogenizers and colloid mills are popular in more than 80 countries including the United States, Canada, Brazil, Venezuela, Germany, Spain, Japan, South Korea, India, Saudi Arabia, Russia, Indonesia, Vietnam, and Egypt. In order to provide the greatest value to our customers, we provide technical assistance and spare parts service as part of our comprehensive customer service. In addition, we provide a one-year warranty for all products.

Model	GYB4000-6S
Equipment flow	4000L/H
Maximum pressure	60MPA
Nominal pressure	54MPA
Motor power	75KW
Equipment size	1730*1200*1460MM
Weight	2950KG
Voltage	380V50HZ3PH

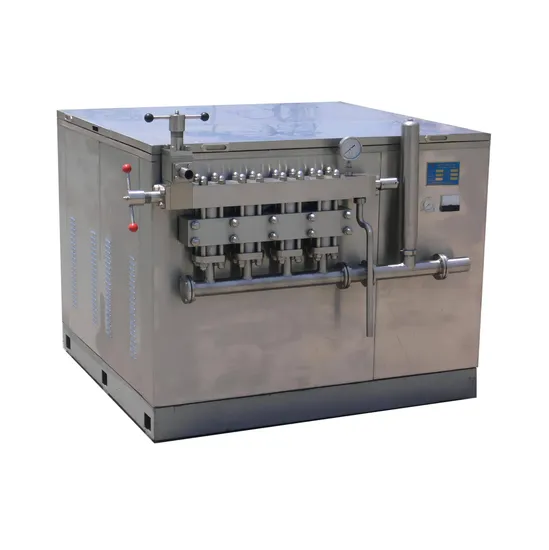

Product Description:
The high-pressure homogenizer is the most effective homogenizer to reduce the size of particles and droplets. It is covered with a polished stainless steel shell. The maximum pressure is 150Mpa. The inside of the machine is made of materials with high strength, high hardness and wear resistance. These materials include tungsten carbide, silicon nitride and ceramics. Our homogenizer has a long life and high efficiency. Application Areas:
It is widely used in the fine processing and superfine grinding of thousands of products in dairy products, soy products, fruit juice drinks, health food, fine chemicals, daily chemical industry, pharmaceutical industry, papermaking, textile, biochemical engineering and other industries. Especially for formula milk, protein drinks, fruit juice drinks, easy layering, easy precipitation and other problems that are difficult to solve for a long time can be solved. It has been widely used in the development of new fine chemical products such as nano-scale pigments, coatings, dyes and graphene materials.
Production Workshop:
High pressure cell crusher
When the high-pressure fluid passes through the pore module under pressurization, the pressure drops sharply to form an ultrasonic flow rate. At this time, particle impact, cavitation and flow dissipation, shear, stress, fluid cell destruction, atomization, and emulsification will occur in the fluid. , Dispersion, liposomes and other phenomena using existing smart mixers, ultrasonics, ball mills, etc., compared to other technologies with higher efficiency of electronic materials, life engineering, pharmaceuticals, food, fiber, coatings, cosmetics and other industries, and even suitable for A wide range of fields.
The high-pressure fluid quickly passes through the narrow gaps of the dispersion unit. At this time, the supersonic flow rate formed by the sharp drop in the pressure in the fluid, the particle collision, cavitation and leakage in the fluid, the shear force acts on the cleaved nano-sized molecules and the fluid composition exists in a completely homogeneous state. .

---
