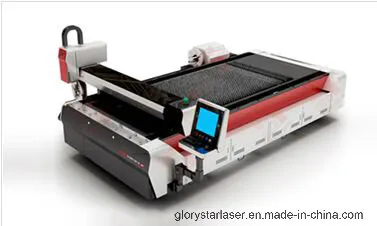

Advanced Fiber Laser Machine for Advertising Decoration (GS-3015 2000W)

Product Description

Advanced Fiber Laser machine for advertising decoration (GS-3015 2000W)
Hot-sale Optical Laser light Cutting machine is used in medical equipment (GS-3015 2000W)
Features
<<<Small, delicate and flexible;
<<<The core transmission components such as gear rack and reducer adopt international famous brands, which have high idle speed;
<<<The machine is equipped with professional operating software, which supports advanced technologies such as cooling point, sharp angle ring cutting and release angle, and dual-drive error monitoring function.
<<<Low space cost, all-in-one integrated design, which means it's small in size, less floor space occupation, low site requirements, no need to be equipped with professional workshops, and saving space cost. According to the development needs of the ente rprise, the forklift can be used to quickly adjust the position of the machine at any time, which is convenient and flexible.
Application
<<<Applicable Industry
Application in sheet metal processing,cookware,advertising,LED lighting,electrical applicance,auto parts,machinery and equipment,household applicances and other high precision parts and metal processing industries.
<<<Applicable Materials
Widely used to all kinds of metal materials with non-contact fast cutting,engraving and drilling,such as carbon steel,stainless steel,alloy,manganese steel,galvanized steel,aluminum,copper and metal pipe processing,etc.
Technical Data

Model	GS-3015
Laser Power	1000W,1500W,2000W,3000W(optional)
Working Area	3000*1500mm
X/Y axis geometry positioning accuracy	≤0.05mm (of total distance)
X/Y axis repeat positioning accuracy	≤0.04mm
Cutting surface roughness	Ra3.2-25.4um
Min. setting unit	0.001mm
Transmission Mode	Gear and Rack Double Driver
Working Voltage	380V / 50Hz(60Hz)
Total power protecting level	IP54
Dimension	4850*2250*1700mm

Cutting sample
Cutting parameter

Material	Gas	Thickness (mm)	Cutting speed (m/min)
			1000W	1500W	2000W	3000W	4000W	6000W
			Single mode 50um	Single mode 50um	Single mode 50um	Single mode 50um	Multimode 100um	Multimode 100um
Carbon steel	O2	1	7.0-9.0	7.0-10.0	7.0-12.0	7.0-12.0	8.0-12.0	8.0-12.0
		2	4.5~5.5	5.0-6.0	5.0-6.5	5.0-7.0	5.0-7.5	5.0-7.5
		3	2.5~3.0	2.9~3.2	3.5~4.0	3.8~4.2	4.0~4.3	4.0~4.5
		4	2.0~2.5	2.4~2.6	2.8~3.2	3.3~3.7	3.5~4.0	3.6~4.2
		5	1.5~2.0	1.8~2.0	2.3~2.7	2.8~3.2	3.0~3.3	3.0~3.3
		6	1.2~1.6	1.4~1.8	1.8~2.2	2.3~2.6	2.5~2.7	2.6~3.0
		8	1.0~1.2	1.2~1.4	1.3~1.7	2.0~2.2	2.2~2.5	2.2~2.5
		10	0.7~0.9	0.9~1.1	1.2~1.4	1.4~1.6	1.8~2.0	2.1-2.3
		12	0.5~0.7	0.6~0.8	0.9~1.0	1.0~1.2	1.3~1.5	1.8~2.0
		14	×	0.5~0.7	0.8~0.9	0.8~1.0	0.9-1.1	1.3~1.6
		16	×	0.4~0.6	0.7~0.8	0.8~0.9	0.8-0.9	1.2-1.4
		18	×	×	0.6~0.7	0.7~0.8	0.7-0.8	0.7~0.8
		20	×	×	0.5~0.6	0.6~0.7	0.6~0.7	0.6~0.7
		22	×	×	×	0.5~0.6	0.5~0.6	0.5~0.6
		25	×	×	×		0.4~0.5	0.4~0.5
	N2/Air	1	15.0~20.0	20.0-25.0	25.0-30.0	30.0-40.0	30.0-40.0	35.0-45.0
		2	×	8.0-12.0	10.0-15.0	20.0-25.0)	20.0-25.0	25.0-30.0
		3	×	×	×	8.0~12.0	8.0-12.0	13.0-18.0
		4	×	×	×	×	5.0~7.0	9.0-12.0
		5	×	×	×	×	×	5.0-8.0
		6	×	×	×	×	×	4.0-6.0
Stainless steel	N2	1	15.0~20.0	20.0-25.0	25.0~35.0	35.0~50.0	35.0~45.0	35.0~55.0
		2	5.0~7.0	8.0-12.0	10.0~15.0	25.0~30.0	20.0~25.0	25.0~30.0
		3	2.0~2.5	4.0~5.0	5.0~7.0	10.0~13.0	10.0~13.0	15.0-20.0
		4	1.0~1.5	1.8~2.4	3.0~4.0	6.0~8.0	5.0~7.0	10.0-15.0
		5	0.6-0.8	1.2~1.6	1.8~2.2	3.0~4.0	4.0~5.0	6.0-8.0
		6	0.4~0.6	0.8~1.2	1.3~1.6	2.5~3.5	3.0~4.0	4.0~6.0
		8	×	0.4~0.6	0.6~0.8	1.2~1.5	1.6~2.0	3.0-4.0
		10	×	×	0.4~0.6	0.7~0.9	0.9~1.2	1.8~2.3
		12	×	×	×	0.5~0.7	0.6~0.8	1.2~1.5
		14	×	×	×	×	0.3~0.5	0.8~1.1
		16	×	×	×	×	×	0.6~0.8
		20	×	×	×	×	×	0.3~0.5
		25	×	×	×	×	×	0.1~0.3
Aluminum	N2	1	10.0-15.0	15.0-20.0	20.0-30.0	30.0~45.0	30.0~40.0	35.0-50.0
		2	4.0-4.5	6.0-8.0	10.0-12.0	15.0~20.0	15.0~20.0	20.0-30.0
		3	1.5-2.0	2.5-3.5	4.0-6.0	7.0-10.0	7.0-10.0	13.0-18.0
		4	×	1.3-1.8	2.0-3.0	5.0-6.5	4.0-5.5	9.0-12.0
		5	×	0.6~1.0	1.0~1.5	2.5-3.5	3.0-4.0	5.0-8.0
		6	×	×	0.6~1.0	2.0-2.5	2.5-3.5	4.0-6.0
		8	×	×	×	0.8~1.0	1.2~1.6	2.0-3.0
		10	×	×	×	×	0.6~1.0	1.5-2.0
		12	×	×	×	×	×	0.8-1.2
		16	×	×	×	×	×	0.5-0.7
		20	×	×	×	×	×	0.3-0.4
Brass	N2	1	8.0-12.0	15.0-20.0	18.0-25.0	25.0-35.0	25.0-30.0	35.0-45.0
		2	2.0-3.0	5.0-7.0	8.0-10.0	12.0-16.0	12.0-16.0	20.0-25.0
		3	0.8~1.2	2.0-3.0	4.0-5.0	5.0-7.0	5.0-6.5	12.0-15.0
		4	×	1.0-1.5	1.5-2.5	3.0-4.0	4.0-5.0	8.0-10.0
		5	×	×	0.8~1.2	2.0-2.5	2.0-3.0	5.0-6.5
		6	×	×	×	1.0-1.5	1.4-2.0	3.0-4.5
		8	×	×	×	×	0.6~0.8	1.6-2.2
		10	×	×	×	×	×	0.8-1.2
		12	×	×	×	×	×	0.5-0.7
Notes: 1. The cutting speed is only related to the laser power, fiber core diameter, and cutting head type, and no related to the machine model; 2. The cutting result of carbon steel above 20mm is related to material and customer site environment;
	It can for mass production for a long time.
	It can be for small production. The cutting quality will be influcted by factors such as the site environment and the material. It is not recommended for mass production.
	It can only cut off but cannot be for production.

Our Factory
About Glorystar
<<<<<Dongguan Glorystar Laser Technology Co., Ltd, Sino-German cooperation, focusing on laser technology & applications, after years of continuous innovation and development, has become a well-known large-scale manufacturer of laser equipment, the company owns office building, R&D building, machining shop, painting and welding shop, assembling shop, modern showroom and standard industrial factory. The company's main products are metal laser cutting machine, non-metal laser cutting machine, laser marking machine, laser welding machine and bending machine. The annual production capacity of 8000 sets of products sold in more than 100 countries and regions. The company was identified as the national high-tech enterprise, and repeatedly won the Technology Innovation Awards. As a leader in laser equipment, Glorystar Laser technology Co., Ltd has a complete R&D system, with many domestic famous universities and research institutions to maintain the close optical and technical cooperation, also is Nanyang Institute of Science and Technology Graduate Trainee base. Products made EU CE certification and the SGS certification, and in all aspects of the incoming, process, machine, shipping and other compliance with ISO quality and environmental management system management guidelines to ensure that the national quality. Carrying the Global view sight, GLORYSTAR keeps on focusing the laser science and technology to share with you in the future successfully.
Global service network
Laser Technology adds the value to customers.

---
