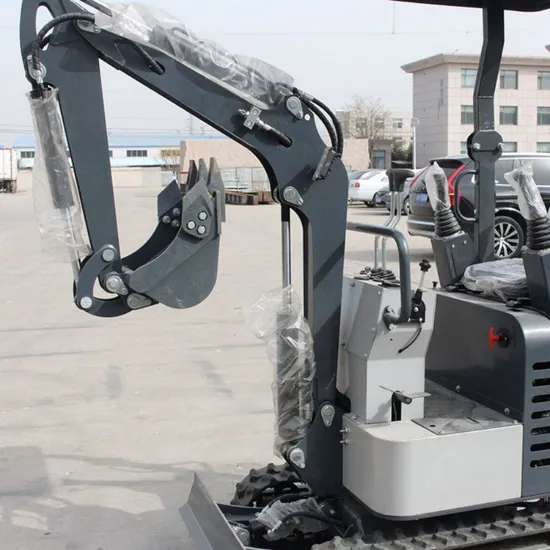

1000kg Mini Small Little Hydraulic Crawler Backhoe Excavator for Garden and Farm

Product Description

Product Parameters

FW10F
Operating Weight	1000KG
Standard Bucket Capacity	0.025m³
Bucket Width	400mm / 16"
Engine Model	KOOP
Optional Engine	Briggs&Stratton / RATO
Bore Stroke	Single Cylinder, Air Cooling
Rated Power	7.6KW/3000RPM
Main Pump	G5-6
Displacement	6.8ml/min
Swing Motor	SANYANG(BMRS-250)
Travel Motor	SANYANG(BMT-245)
Travel Speed	3km/h
Dimensions
Sizes (L*W*H)	2200*930*2250 mm
Wheelbase	910 mm
Track Length	1230 mm
Platform Ground Clearance	380 mm
Min. Radius of Tail Rotation	784 mm
Chassis Width	896 mm
Track Width	180 mm
Chassis Ground Clearance	132 mm
Track Height	320 mm
Operating Range
Max. Digging Depth	1650 mm
Max. Vertical Digging Depth	1375 mm
Max. Digging Height	2610 mm
Max. Dumping Height	1850 mm
Max. Ground Level Digging Radius	2850 mm
Min. Radius of Gyration	1330 mm
Max. Lifting Height of Bulldozer Blade	345 mm
Max. Cutting Depth of Bulldozer Blade	255 mm

Detailed Photos

Company Profile

FAQ

FAQ
Q:Are you a manufacturer or Trader ? A:We are a professional manufacture, we have our own R&D team and sales team, we provide one-stop service.
Q:What is your payment term ?
A:We accept T/T, L/C at sight, Western Union, PayPal etc.
Q:How long is the validity of quotation ?
A:Generally, our price is valid within one month from the date of quotation. The price will be adjusted appropriately according to the price fluctuation of raw material and changes in market.
Q:What is your delivery time ?
A:Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit.
If we don't have the products in stock, we will arrange the production right now, the delivery time will be 30-45 days, It depends on the order quantity.
Q:Do you provide OEM/ODM Service ?
A:Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets
Q:Do you have CE certificate ?
A:Yes, most of our products have the CE certificate
Q:How can we ensure quality?
A:The final inspection is always carried out before shipment.
Q:How to install the equipment after purchasing ?
A:We will provide professional installation video to illustrate. Also provide manual.
Q:Do you offer a guarantee?
A:Yes, we guarantee our product for one year. Provide after-sales service support and agricultural technical support.
Q:What is your MOQ?
A:1 Set

---
