Basic Info.
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.5~1.0m³
Certification
CE, ISO9001: 2000
Unique Selling Point
High Operating Efficiency
Maximum Digging Height
10100 mm
Maximum Digging Depth
6490 mm
Max Digging Radius
9865 mm
Operating Weight(Kg)
21900
Engine Power(Kw/Rpm)
140/2000
Bucket Rod Digging Force(kN)
99/107
Bucket Digging Force(kN)
137/148
Rotating Speed(R/Min)
0-11
Travel Speed(Km/H)
3.7/5.3
Maximum Digging Height(mm)
10100
Transport Package
Nude Package
Specification
9605*4915*3040MM
Production Capacity
5000PCS Per Month
Packaging & Delivery
Package Size
960.00cm * 492.00cm * 304.00cm
Package Gross Weight
21900.000kg
Product Description
Product Description
Parameter
| SE215W
|
Operating weight(kg)
| 21900
|
Engine power(kW/rpm)
| 140/2000
|
Bucket capacity(m³)
| 1
|
External dimensions(mm)
| 9600*2980*3100
|
Bucket rod digging force(kN)
| 99/107
|
Bucket digging force(kN)
| 137/148
|

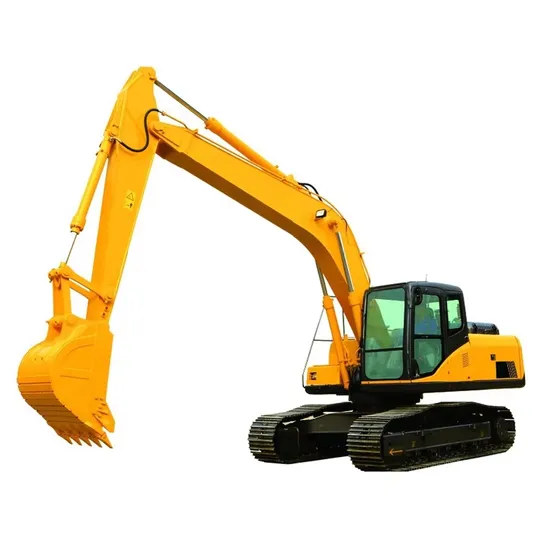

SHANTUI SE215W 22 Ton Crawler Excavator
The machine is equipped with a high-power, large-torque engine, which is matched with a large-displacement main pump to ensure exceptional efficiency. It utilizes an electronic control positive-flow system and a self-developed optimized integrated control system, resulting in improved efficiency and a fuel consumption reduction of over 5%, surpassing its competitors.
Ease of maintenance and operation comfort
The engine hood opens backward with lightweight and has a wide opening to facilitate convenient maintenance. The fuel filter elements are centrally located near the right-side door, making maintenance easy. The coolant refilling and the replacement of air filter elements are easily accessible.
Adaptability to diverse working conditions
The machine offers an easy combination with reinforced booms, bucket rods, buckets, and other attachments to cater to diverse working conditions. The nano-integrated air filter, with its high filtration precision, offers comprehensive protection for the engine, making it ideal for operating in extremely dusty environments.
Detailed Photos
Product Parameters
Parameter
| SE215W
|
Operating weight(kg)
| 21900
|
Engine power(kW/rpm)
| 140/2000
|
Bucket capacity(m³)
| 1
|
External dimensions(mm)
| 9600*2980*3100
|
Bucket rod digging force(kN)
| 99/107
|
Bucket digging force(kN)
| 137/148
|
Rotating speed(r/min)
| 0-11
|
Travel speed(km/h)
| 3.7/5.3
|
Maximum digging height(mm)
| 10100
|
Maximum digging distance(mm)
| 9865
|
Maximum digging depth(mm)
| 6490
|
Emissions (Indicated as per international standards)
| Stage 3
|
