Digital Display High Voltage Insulation Resistance Tester Ohmmeter

Product Description

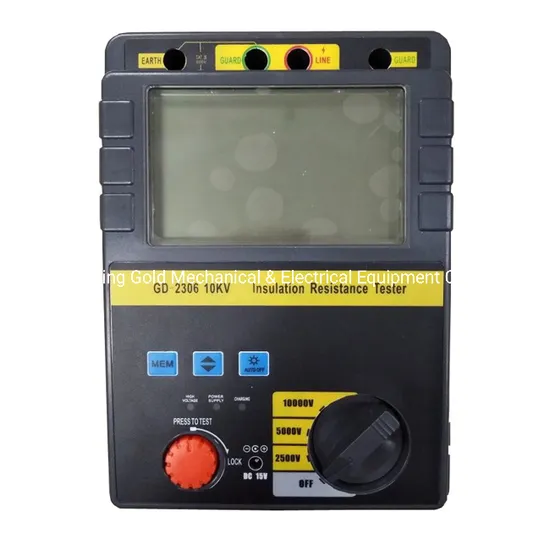

GD-2306 Digital Display High Voltage Insulation Resistance Tester Ohmmeter
Introduction: GD-2306 Digital Display High Voltage Insulation Resistance Tester Ohmmeter embedded real-time industrial microcomputer operating system, ultra-thin wire-shaped sheets header with the perfect combination of dot matrix liquid crystal display, the instrument is with a variety of voltage output level(250V,500V,1000V,2500V, 5000V,10000V),high capacity, strong anti-interference, the pointer and digital synchronous display, AC-DC dual-use, simple operation, automatic calculation of various insulation index (absorption ratio, polarization index), all measured characteristics with the anti-power-down function . GD-2306 Digital Display High Voltage Insulation Resistance Tester Ohmmeter is suitable for measuring high capacity transformers, transformers, generators, high voltage electric motors, power capacitors, power cables, surge arresters and other ideal insulation resistance test equipment.
Specification:
1.Measuring range and accuracy
(Temperature, humidity: 23±5ºC, 45~75%RH)

Model	GD2305 Digital Display High Voltage Insulation Resistance Tester Ohmmeter
Rated Voltage	250V	500V	1000V	2500V		5000V
Measuring Range	0.0~99.9MΩ 100~999MΩ 1.00~10.0GΩ	0.0~99.9MΩ 100~999MΩ 1.00~9.99GΩ 10.0~20.0GΩ	0.0~99.9MΩ 100~999MΩ 1.00~9.99GΩ 10.0~40.0GΩ	0.0~99.9MΩ 100~999MΩ 1.00~9.99GΩ 10.0~100GΩ		0.0~99.9MΩ 100~999MΩ 1.00~9.99GΩ 10.0~99.9GΩ 100~200GΩ
Open circuit Voltage	DC 250V +20%, -0%	DC 500V +20%, -0%	DC 1000V +20%, -0%	DC 2500V +20%, -0%		DC 5000V +20%, -0%
Short-circuit Current	Approx 3.3mA
Accuracy	±5%±3dgt				100GΩor more ±20%

Model	GD2306 Digital Display High Voltage Insulation Resistance Tester Ohmmeter
Rated Voltage	5000V	10000V
Measuring Range	0.0~99.9MΩ 100~999MΩ 1.00~9.99GΩ 10.0~99.9GΩ 100~200GΩ	0.0~99.9MΩ 100~999MΩ 1.00~9.99GΩ 10.0~99.9GΩ 100~400GΩ
Open circuit Voltage	DC 5000V +20%, -0%	DC 10000V +10%, -0%
Short-circuit Current	Approx 3.3mA
Accuracy	±5%±3dgt		100GΩor more ±20%

Operating system:Dual integration Display: Liquid crystal display(Max. 9999counts) Bar graph / Max. 31points Low battery warning:Battery mark display (in 4 levels) Over range indication:"----" mark appears on insulation resistance range Sample rate:approx 0.5~5 times/sec Operable altitude:2000m or less above sea level Temperature & humidity range (guaranteed accuracy):23±5ºC / Relative humidity 85% or less (no condensation) Operating temperature & humidity range: 0ºC~+40ºC / Relative humidity 85% or less (no condensation) Storage temperature & humidity range:-20ºC~+60ºC / Relative humidity 75% or less (no condensation) Insulation resistance:1000MΩ or more /DC 1000V(Between electrical circuit and enclosure) Dimension:230(L) ×190(W) ×90(D) mm Weight:approx 3.5kg (battery included) Power source:DC15V/4A Adapter Power Or DC9.6V: charging battery size AA×8pcs Company Profile

---
