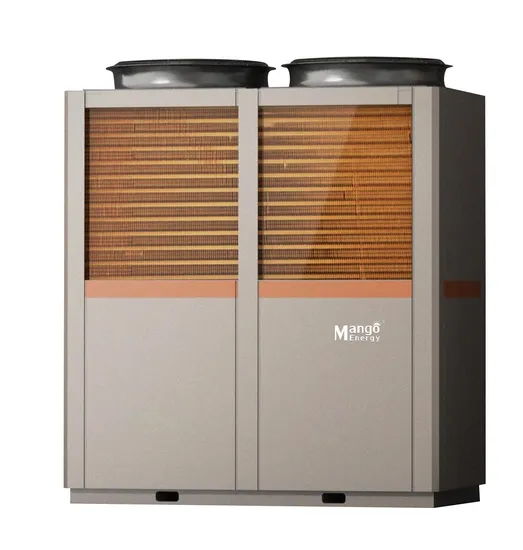

18.6Kw Air source heat pump with Copeland compressor for heating/cooling
Domestic series (with Built-in Water Pump) : This series of Domestic Air/Water Heat Pump adopts high efficiency tube-in shell heat exchanger and built in water pump inside the heat pump unit, which ensures not only high efficiency performance of the system but also easy installation work. Different from other ordinary Domestic Split System in installation, just simply connection the heat pump unit to the water tank through water piping, refrigerant pipe connection work is not needed. The water tank connection with this heat pump does not have copper coil heat exchanger inside, which saves the cost of water tank.
| Model | | KF240-B | KF400-B | KF480-B | KF240-B/D | KF400-B/D | KF480-B/D |
| Heating (A20/W15-55) | Hot water capacity | KW | 11.2 | 18.6 | 21.4 | 11.5 | 19.2 | 22.3 |
| COP | W/W | 4.31 | 4.24 | 4.12 | 4.35 | 4.38 | 4.36 |
| Heating (A7/W35) | Heating capacity | KW | 8.5 | 14.8 | 17 | 8.9 | 15.5 | 17.6 |
| COP | W/W | 4.01 | 4.05 | 4.02 | 4.1 | 4.1 | 4.0 |
| Heating (A7/W45) | Heating capacity | KW | 7.9 | 14 | 16.2 | 8.2 | 14.6 | 16.5 |
| COP | W/W | 3.21 | 3.26 | 3.21 | 3.28 | 3.31 | 3.15 |
| Rated heated water output | L/h | 240 | 399 | 459 | 246 | 411 | 478 |
| Rated outlet water temp | ºC | 55 |
| Max outlet water temp | ºC | 60 |
| Rated power input | Kw | 2.6 | 4.4 | 5.2 | 2.6 | 4.4 | 5.1 |
| Rated current | A | 12.4 | 13.4 | 14.4 | 15.4 | 16.4 | 17.4 |
| Power supply | V/Hz/Ph | 220~240/50/1 | 380~415/50/3 | 220~240/50/1 | 380~415/50/3 |
| Compressor | Brand | | Emerson Copeland |
| Compressor type | | Scroll | EVI Scroll |
| Number of compressor | | 1 | 1 | 1 | 1 | 1 | 1 |
| Evaporator | Type | | Hydrophilic Aluminum Fin Heat Exchanger |
| Water side heat exhanger | Type | | High Efficient Tube in Shell Heat Exchanger |
| Pressure Drop | kPa | 30 | 40 | 45 | 30 | 40 | 45 |
| Throttling device | | | Electronic Expantion Valve |
| Fan motor | Fan type | | Low noise high efficiency axial type |
| Fan discharging | | Horizontal | Horizontal |
| Fan quanlity | | 1 | 2 | 2 | 1 | 2 | 2 |
| Fan input | W | 50 | 90 | 90 | 50 | 90 | 90 |
| Fan speed | RPM | 880 | 840 | 840 | 880 | 840 | 840 |
| Water pump | Brand | | WILO | NO |
| Head | m | 6 | 8 | 8 |
| Controller | | LCD Wire Controller |
| Ambient temperature range | ºC | -7~43 | -25~43 |
| Refrigerant | | R407C / R410A |
| Water flow | m3/h | 1.9 | 3.2 | 3.7 | 2.0 | 3.3 | 3.8 |
| Water pipe size | | DN25 | DN25 | DN25 | DN25 | DN25 | DN25 |
| Noise in 1 meter distance | dB(A) | 59 | 63 | 63 | 59 | 63 | 63 |
| Cabinet | | Stainless Steel / Galvanized Powder Coated Steel |
| Low pressure protection system | | YES |
| High pressure protection system | | YES |
| Water flow switch | | YES |
| Automatic defrosting system | | YES |
| Dimension | W/D/H | mm | 1110/400/750 | 1110/530/1260 | 1110/530/1260 | 1110/400/750 | 1110/530/1260 | 1110/530/1260 |
| Net weight | kg | 110 | 155 | 170 | 110 | 155 | 170 |
