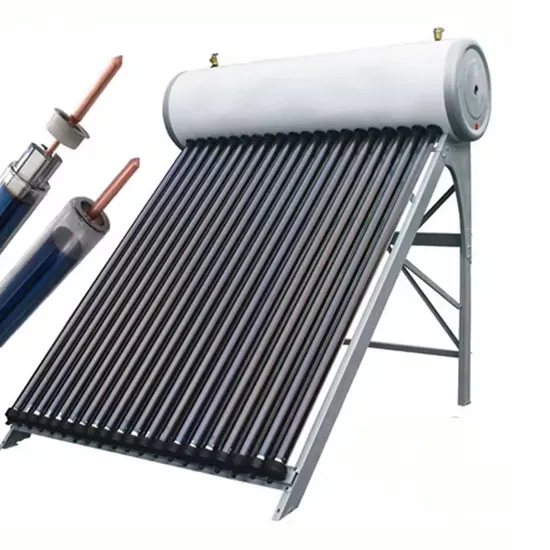

OEM Manufacturer Heat Pipe Pressure Solar Thermal Water Heater Mounted on Rooftop

US$199.00-459.00 10 Sets (MOQ)

Basic Info.

Model NO.

150L

Max. Capacity

300L

Structure

Compact Type

Pressure

Pressurized

Interior Material

Stainless Steel

Collector Components

Heat Pipe

Composition

Heater

Certification

CE, ISO9001, CCC, RoHS, CB, SASO

Transport Package

Carton, Wooden Box

Specification

150L

Trademark

MLSUN

Origin

China

Production Capacity

300000 Sets/Year

Packaging & Delivery

Package Size

170.00cm * 50.00cm * 50.00cm

Package Gross Weight

22.000kg

Product Description

We produce Pressurized Heat Pipe solar water heater.
We also provide OEM ODM manufacturing services to meet customer's special needs.
Datasheet of Pressurized Heat Pipe solar water heater (100L to 300L), with CE Certificate for EU.

Heat Pipe (Pressure) solar water heater	Tube diameter	Tube length	Tube quantity	Capacity	Inner tank	Outer tank	Insulation	Frame	Max. pressure
HP10-58/1.8	Φ58mm	1800mm	10 tubes	100 L	Food grade stainless steel SUS304	Stainless steel SUS201/ Galvanized steel/ Aluminum alloy	Polyurethane thickness 50mm	Stainless steel SUS201/ Galvanized steel/ Aluminum alloy	10 bar
HP12-58/1.8	Φ58mm	1800mm	12 tubes	120 L
HP14-58/1.8	Φ58mm	1800mm	14 tubes	140 L
HP15-58/1.8	Φ58mm	1800mm	15 tubes	150 L
HP16-58/1.8	Φ58mm	1800mm	16 tubes	160 L
HP18-58/1.8	Φ58mm	1800mm	18 tubes	180 L
HP20-58/1.8	Φ58mm	1800mm	20 tubes	200 L
HP22-58/1.8	Φ58mm	1800mm	22 tubes	220 L
HP24-58/1.8	Φ58mm	1800mm	24 tubes	240 L
HP25-58/1.8	Φ58mm	1800mm	25 tubes	250 L
HP26-58/1.8	Φ58mm	1800mm	26 tubes	260 L
HP28-58/1.8	Φ58mm	1800mm	28 tubes	280 L
HP30-58/1.8	Φ58mm	1800mm	30 tubes	300 L
