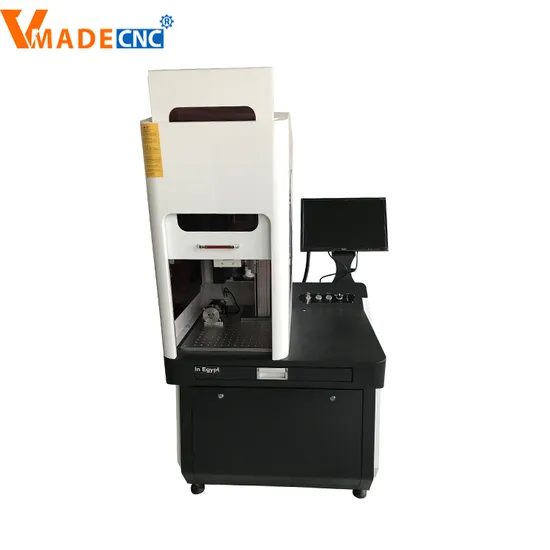

Enclosed Cover Laser Engraving Marking Machine

Product Description

Product feature
>> High conversion efficiency (over 60%) and low laser threshold
>> Simple structure, flexible medium working material, easy to use
>> The beam is of high quality (easily approaching the diffraction limit)
>> The laser output spectral lines are many and the tuning range is wide
>> Small volume, light weight, good heat dissipation effect, long service life
1: Laser source
Radio frequency tube laser source with high laser energy,fine laser path,low fault rate.the life time can up 100,000 hours,guarantee for 3 years.
2: High-speed Digital Galvanometer scanning ststem
High speed scanning galvanometer with fast marking speed,digital signal,high precision.
3: F-Theta Lens
Singapore lens,very fine focusing , 110mm*110mm to 300*300mm marking area
4: Control Board & Control Software
Famous brand original EZCAD Control system with high stability and easy operation,good performance ,support win7,win8,win10.
5: Red Light Indicator
Adopt red light indicator to show the laser path since invisible laser beam.
6: Power Supply
Power supply for galvo head and control board.High efficiency,low working temperature.
7: Control Button.
Humanized control system,easy to operate,dust proof design.
8: Lifting Handle
To rotate the handle to adjust the height to get focus of laser as per the working piece.it is for 700mm height adjustable.
9: Rotary Device(Optional)
For round or arc workpiece marking ,matched with adjustable-speed motor.
Product Description
Product Parameters

Technical parameters
Model	VLF-E-20W 30W 50W 60W 80W 100W
Lens size	70/100/150/175/220/300 mm optional
Laser source	RAYCUS or JPT
Galvo system	High quality Galvo scanning
Laser Power Control	0-100% Software Controlling
Axial Speed	8000mm/s
Repeat Location Accuracy	± 0.02mm
Voltage	AC110V 60HZ or AC220V 50HZ ±10%
Cooling System	Air cooling
Min character	0.1mm
Operate system	Windows XP/7/8/10
Format Support	PLT/DXF/AI/SDT/BMP/JPG/JPEG
Software	Ezcad
Warranty time	2 years!
Model	VLF-E-20W 30W 50W 60W 80W 100W

Packaging & Shipping
Company Profile
Certifications
After Sales Service
Pre-sale service
1.* Free sample marking
For free sample testing, please send us your file, we will do marking here and make video to show you the effect,or send sample to you for checking quality.
2.*Customized machine design
According to customer's application, we may revise our machine accordingly for customer's convenience and high production efficiency.
After-sale Service
1.*Before delivering the machine, we will test and adjust machine, so you can use it directly when you get it.
2.*If you have problems while using, 18 hours online professional advice available.
3.*Lifetime software free upgrades.
4.*UV laser source we warranty for 18 months ,the other parts of machine warranty for 2 years.
5.*We have professional staff to explain the instructions of the machine and the problems you have encountered.

---
