(12000-15000BPH) Full Automatic Bottle Carbonated Drink/Beverage/Juice/Carbonated Drink/Soda/Soft/Mineral/Pure Water Filling Bottling Machine

Product Description

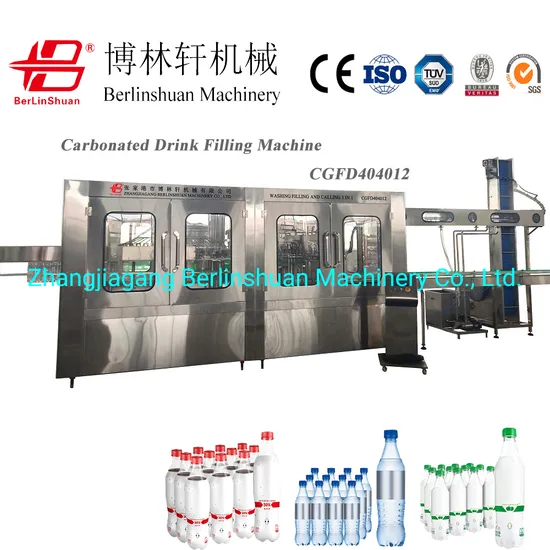

Full Automatic PET Bottle Carbonated Drinks Making / Filling Machine
Product Brief Introduction:
1. Application: Filling carbonated drink. for example: Soda water, Cola, Sprite, Fanta,......
2. Capacity: 12000-15000BPH (bottles per hour )@500ml.
3. Bottle Type: PET bottle. 250ml, 330ml, 500ml, 750ml, 1000ml, 1250ml, 1500ml.
4. Machine contains: bottle rinsing, beverage filling, caps sealing, and complete automation.

Product Name	Carbonated drink filling machine
Model	CGFD404012
Heads of washing filling and capping	40-40-12
Capacity	12000-15000BPH(@500ml)
PET bottle Diameter	φ50-φ110mm (Height): 150-310mm (Volume: 250ml -2000ml)
Material	Stainless Steel 304
Total power	7.5kw
Filling pressure	0.15-0.35MPa
Rinsing pressure	0.2-0.25MPa
Size	4200x2800x2550mm
Weight	7500kg
Touch screen	Mitsubishi(Japan)/Willen(Taiwan)
PLC	Mitsubishi(Japan)
Electronic control keys	Mitsubishi(Japan), Siemens(Germany)

Features:
1. This carbonated filling mono-bloc is made of super stainless steel. It has compact structure, good appearance, scientific and reasonable design. It is available for the bottles from 200ml to 2000ml.
2. It adopts the technology of direct contact with air conveyor and bottle inlet poking wheel, taking stead of the feeding screw and conveyors, which making it much more convenient to change the bottle shape.
3. This machine adopts advanced bottle neck clamping system, which get rid of the requirement of bottle height. So there is only a few parts need to change while different bottles are used on the same machine, such as the guide plate and the poking wheel.
4. Perfect stainless steel bottle gripper of rinsing avoids the secondary contamination by no touch with the bottle screw parts.
5. It is equipped with high speed filling valve of high precision filling.
6. The capping head adopts constant magnetic torque device to ensure the high capping quality without damage. High efficient cap settling system, cap feeding system and no bottle no cap system make the whole capping system perfect.
7. It adopts spiral descent fashion for the support plate for bottle bottom at the outlet thumb wheel. It removes the need of adjusting the inlet bottle height for change bottle models.
8. This carbonated beverage filling machine adopts advanced PLC control and touch screen. The key electric elements are from international famous brand.

---
