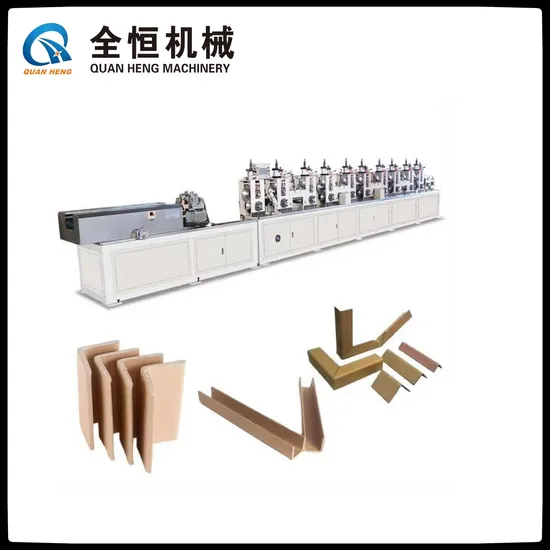

Qh Pack High Speed Paper Angle Machine

Product Description

QHJQ-GS Paper protecting angle punching machine
:
Technical parameters:
:
Paper angle specification: wide 20-100mm, long 30-9000mm, thick 1-8mm.
:
Production speed: 0-20m/min (protector 50-100mm)
0-60m/min (the length of the protector is greater than 1500mm)
:
Main power: 7.5kw+4.3kw*2
:
Control mode: variable frequency speed regulation
:
Raw materials: paper 150g-200g, core paper 300g-420g
:
Cutting mode: automatic cutting
:
Operation number: 1-2 people
()
Size (millimeter):
:
Mainframe size: length * width * high: 7000*700*1400 (mm)
:
Area: length * width: 20m*3m
:
Hub diameter: 310mm
:
Hub height: 176mm
drive system:
:
Main power: 7.5kw Shanghai high speed, Hengshui Yongshun
:
Host speed: 1400r/min
:
Wheel hub maximum speed: 140r/min
:
Gearbox model: WPA/B120 1:10
:
Transmission chain model: 12A
:
Bearings: Universal bearings
:
Cutter motor: servomotor 4.3kw *2 Europe Rui brand
:
Linear guide: Taiwan Silver
Control system
:
Man-machine interface: special product
:
Program version: cx-pq.04
:
Frequency converter: an amp product
(
Main actuator (contactor): CHINT products
:
Cylinder element: Cable - day Olympics
:
Synchronous controller: special product
Configuration device
8 sets of molding devices
Right angle paper rack
Gumming device
()
Cutting device (NC)
Stainless steel operating table
Adhesive rack for stainless steel
Paper rack and paper wheel for stainless steel tube
:
Application tool: a set of inner six angle wrenches
