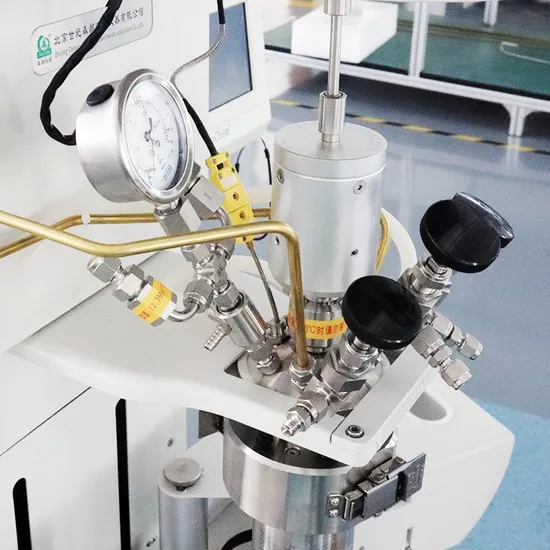

AC100ml Laboratory Stainless Steel Material Stirring Autoclave

Product Description

Detailed Photos
Product Description
As a high-pressure chemical reactor, the fully automatic microreactor is suitable for research and process control of high-temperature and high-pressure chemical reactions in various laboratories today. It is a traditional R&D and production equipment in the chemical industry, which can fully stir various chemical materials at high pressure and temperature to enhance mass and heat transfer processes. It has been widely used in research fields such as catalytic processes, catalyst preparation, petroleum, chemical, organic synthesis, polymer material polymerization, chemical conversion of food and biomass. Liquid liquid mixing, gas-liquid reaction, gas-liquid powder and other experimental systems. Product features:
Fixed kettle head, dual electric lifting system
Touch screen control system;
Temperature setting range: 0-350 ºC;
Mixing speed 0-1200 revolutions per minute;
Pressure digital display;
Overpressure alarm function;
Temperature, speed, pressure, and torque curves are displayed;
Two way temperature detection, overtemperature and fault sound and light alarm system;
Fully automatic inlet cooling function;
The forward and reverse rotation of the motor can be set;
Data storage function and USB data export function;
Quick disassembly structure of reaction kettle;
Paddle mixing method

Technical parameters of reaction kettle
Specification	AC-100ML	volume	100ML
Design temperature	400ºC	Operating temperature	≤350ºC accuracy:±1ºC
Design Pressure	12.5MPa	Work pressure	≤10MPa
Material	316L stainless steel	Cooling coil	Yes
Opening and closing method	Quick opening snap ring seal	Mixing method	Propelling paddle, four bladed propeller
Heating method	Modular electric heating	Heating power	power:1.2KW
Sealing mode	Magnetic coupling static seal, high temperature resistant composite sealing gasket TYPE A double wire seal	Electric lift	Automatic lifting and lowering, lifting range: 300 mm, and 90 degrees left and right rotation
Openg-ended system	Kettle cover and kettle body separated, automatic lifting and opening	Insulation model	External heat preservation of the kettle chamber: the heat preservation cover is waterproof, corrosion resistant and not easy to rust. Heat preservation: the shell temperature is about 45ºC at 350ºC
Kettle lip opening	8 ports, respectively: inlet, exhaust, stirring, temperature measurement, cooling cycle inlet, cooling cycle outlet, pressure measurement: safety relief, overpressure relief 12.5mpa, pressure sensor,
Series MRSC-AUTO HighPressure Reactor Systems
Control model	7 inches touch true color screen control, which can realize the laptop computer control, hierarchical control, temperature control module with 31 period of temperature programmed control, two-way internal and external temperature detection, pressure with the overpressure protection function display, temperature display with overtemperature protection function, with a power-off protection and leakage protection function, can online store experimental data memory and export printing.
Motor type	220V AC R three-phase explosion-proo	Motor power	80W-150W
Rotational speed	0-1200 revolutions per minute Torque: 0.5 to 10 nm	Inorganic speed	Frequency control R
Measurement temperature model	K armoured thermocouple	At the end of tube	Close to bottom of kettle, with 5um filter
Time ,Rotational and pressure display setup :Yes ; No
Heating setting	Manual adjustment + computer adjustment, intelligent temperature control program
Heat up speed	≤6ºC/min

Product Parameters
Company Profile
Our Advantages
Packaging & Shipping
FAQ
Q1:Are you trading company or manufacturer?
A1:We are professional manufacture of lab equipment and we have our own factory which is a high-tech enterprise integrating R&D, production and sales. And welcome to visit our factory.
Q2: How long is your delivery time?
A2: Usually, delivery time is 30-45 days after receiving your payment.
Q3:How to shipping the replacement parts?
A3:We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.
Q4: How about your quality warranty ?
A4: Normally all SENLONG products are supplied with a warranty of 12 Months from the date of shipment.
Q5:Can we visit your factory?
A5: Welcome visit our factory.
Q6:What is your terms of payment?
A6:Payment≤15,000USD, 100% in advance. Payment≥15,000USD, 70% T/T in advance, balance before shipment.
(If you are concerned about payment security for the first order, we advise you can place Trade Assurance Order via Made in China. you will get 100% payment refund if we can't meet agreed delivery time.)

---
