China Manufacturer High Capacity Kraft Paper Making Equipment Corrugating Medium Making Machine

Product Description

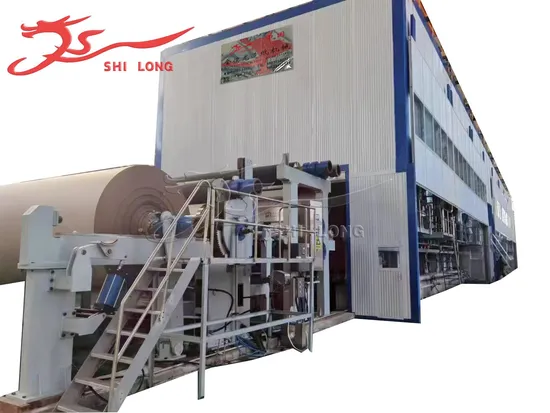

Corrugated paper kraft paper making machine full production line
The corrugated/kraft paper making machine is the general term of the full set of equipment for the divisional linkage of the paper pulp to make paper, including the headbox, net part, press part, drying part, calender machine, paper rolling machine and transmission part, and auxiliary systems such as steam, water, vacuum, lubrication and heat recovery.
The machine is a multi-purpose machine type, with easy operation, low noise, high performance, work continuously feature. We have this kind kraft paper making machine for 1092, 1575, 1880, 1760, 1880, 2000, 2400, 2880, 3200, 3600, 4200 etc.
The machine use waste paper as raw material, the price is related with capacity, paper width, paper weight these configuration. We accept customization. Note:In order to give you the exact design and offer, kindly advise your below requirements for this paper machine:
·What kind of paper do you want to produce?
·What raw materials will you use to produce the paper?
·What is the paper GSM·What is the paper trim width?
·What is the daily capacity (ton/day) of the paper?
·What is your land size for this paper mill? Please feel free to contact us if you're new in this fields, we would like to provide technical support and service, and recommend the suitable machine for you !!! Product Paramenters Raw Material Recycle waste carton paper, cardboard paper, waste paper, waste book paper, waste newspaper, waste paper white edge as raw materials

Product brand:	Shilong Paper Machinery
Product model:	SL-4400mm
Raw material:	Waste paper, white paper scrap, waste carton paper
Finished paper:	Corrugated paper, kraft paper, cardboard paper
Output paper weight:	100-200g/m2
Net paper width:	4400mm
Capacity:	150-200 T/D
Working speed:	200-300 m/min
Design speed:	350 m/min
Driving Method:	Ac frequency conversion, partial speed drive
Dynamic transmission power:	300kw

Finished Paper
Application
Detailed Description Every Section of the Kraft Paper Machine Line: 1.Wire Section :
usually,it has two kinds of wire part,one is cylinder mould wire type,the other is fourdrinier wire type.Its function is to
dewater from the wet paper 2.Press Section:
function is to press water from wet paper,after press,the dryness of the paper is range from 22% to 46%. 3.Dryer Section:
function is to make paper dry,after the paper come out from the dryer,the dryness can be 92%-95%. 4.Reeling Section:
function is to reel the paper into jumbo paper roll. 5.Sizing Section:
Sizing machine's funtion is to add the starch to paper and let paper is waterproof.(optional) 6.Calender Section:
function is to let the paper surface smooth.(optional ) 7.Rewinding Section:
function is slit&rewind the jumbo roll paper to small roll.(optional )
Production Process
Details Images
Company Information
FAQ
1. How long it will take to get the quotation? --We usually give reply within 24 hours after getting your inquiry. If you are urgent to get the quotation, please feel free to call or tell us by email, then we can reply you as the first priority. 2. How long is your Warranty? --All our products will have one year guarantee and we will continue to offer advice and spare parts after this period. Within 1 year after receiving our machines, under right operation and non-artificial reasons, If there are any damaged parts or accessories, we will replace them by air-mail or express immediately free of charge. After 1 year warranty, Spare parts and damaged parts will be charged at cost price. If there is something wrong with the machine, we are responsible to solve this problem soonest, and help customers to restore production as soon as possible. 3. Can you make paper mill design for us? --Yes, we have professional team with rich experience of paper mill design by CAD software. You only need to tell us your open land dimension, we will make your future paper mill design. 4. What's the payment terms? --30% initial payment when place your order, 70% balance payment before shipment. 5. How about your machine quality, we are worry about the quality. --Shilong is a mature brand in china, 30 years manufacturing experience of different kinds of paper machines. We strictly manufacture and manage according to IOS9001:2008 System. And can match all the CE standard or more strict standard. Our paper machine is running well in more than 20 countries.
6. Could your engineer teach and train our worker and stay in our factory for long time? --Yes, we will send rich practiced experience engineers to your country to install and test the machine and train your workers, but you should pay them salary. 7. Your machine price is high,is there any discount? --Our machine price is reasonable, we are factory, so the price of machine is factory price, we are looking forward to cooperate with you, please do not hesitate to contact our sales for good price.

---
