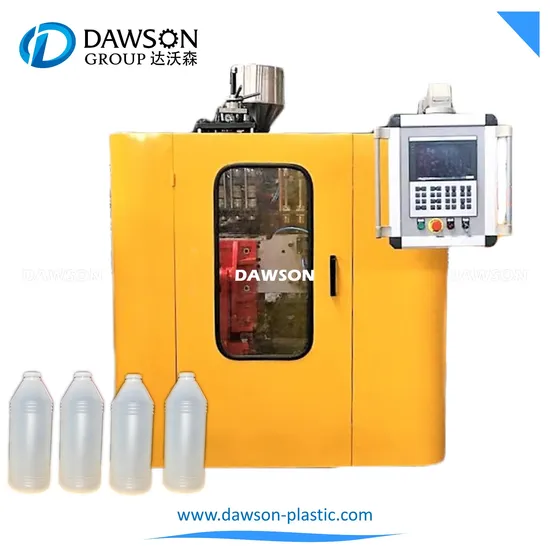

High Speed Yogurt Bottles Extrusion Blow Molding Machine

Product Description

DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT*** Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....


Automatic Extrusion Blow Molding Machine DSB65I DSB65I full-automatic bottle making machine is specially designed for plastic chemical bottles,medical bottles,lubricant oil bottles,cosmetic bottles,and other small plastic bottles not over than 5Liters. 1. Suitable products
0~5L HDPE, PP bottles
Applications: milk bottles, food pack containers, jars, chemical bottles,
Lubricants bottles, household bottles, detergent/shampoo bottles, oil bottles.
2. Station
This machine can be double station or single single station, depends on your output demands. 3. Die head
This machine when using single die head, can make 2L to 5L bottles,
, the die head can also be changed to double die head. Single die head (2~5L)
Double die head (0~2L) Changing the die head system takes around 1.5~3h, this also included heating time. 4.Mould - Aluminium 7075# inserted beryllium copper the best blow molding mould material, aluminium mould has good cooling, and beryllium copper is very durable as well.
( we also provide S50c, P20, S136 material for you to choose, mould can be auto-deflashing or without auto-deflashing.) 5. MOOG 100 Point Parison control system is a program to change the parison thickness,As the plastic is extruded from the die head,the programming can:1. Reduce the plastic used2. Improved wall thickness distribution3. Reduce cooling time Do we have to use MOOG parison system? No, We also have many customers they do not use MOOG parison control system, as on our machine's die head, we also can manually adjust the die gaps, from which it can also control the thickness and weight of bottles. MOOG is more precision, and more easy to do the adjust. It also depends on your ending customer demands and markets.
But for some special designed blow molding items & accumulation type blow molding machines, MOOG is indispensable, it has to use MOOG. Our servo motor is using ITALY PHASE SERVO MOTOR.
Which is one of the best & most reliable servo system for hydraulic.
FEATURES
1. Energy Saving
Energy savings at least 40% greater than conventional fixed displacement pump systems (The energy-saving effect varies depending on the operation conditions.)
2. High Accuracy with Simple Operation
High-Accuracy servo control according to analog pressure (P) / flow rate (Q) voltage commands
3.Longer life for hydraulic units & O sealings
MOOG Servo motor due to its instant reaction speed, it does not require always running like traditional induction motor, so the hydraulic oil temperature is lower, which protect the hydraulic units and O-rings to use more longer life.
4. Faster Shipping Adjustment
Simple adjustment to start a trial run on the machine, meaning a shorter adjustment time
5. Improving the Working Environment
Reduced noise during operation
6. Exceeds Standard of High Efficiency Motor regulation
Incorporating a motor dedicated to servo-based rotational speed control
Since no induction motor is used, the maximum discharge rate of the pump does not fluctuate depending on the power supply frequency, making it unnecessary to adjust the machines' maximum speed for each shipping destination.

Automatic Extrusion Blow Molding Machine DSB65I-4 u Product: 0~5 L Bottles
u Power supply: 380/220v 50/60 Hz Tri-phase
u Die head number: Single / Double
u Suitable raw material: PE, PP, PVC, PS, PETG
u Output capacity: 140~160 pcs/h (5L) / with single head
300~320 pcs/h (1L) / with double head

SPECIFICATIONS	UNITS		DSB65/75 SERIERS
Max container capacity	L		5
Number of die heads	Set		1
Dry cycle time	Second		5
Machine dimension (L*W*H)	M		3 *1.9 *2.4
Total weight	Ton		3.5
CLAMPING UNIT
Clamping force	KN		68
Platen opening stroke	mm		200-500
Platen size	mm		360*390
Max mould size (W*H)	mm		390*390
Mould thickness	mm		210-300
Platen moving distance	Mm		440
POWER
Extrusion motor power	KW		15
Oil pump motor power	KW		5.5
Extrusion heating power	KW		12
Head heating power	KW		5.7
Cooling Fan power	KW		0.42
Total power	KW		38.62
Average power consumption	KW		21
EXTRDER UNIT
Screw diameter	mm		65/75
Screw L/D ratio	L/D		24
Plasticizing capacity	Kg/hour		75~80
Number of heating zone	Zone		3
Extruder heating power	KW		12
Extruder driving power	KW		15
Cooling Fan No			3
Fan power	KW		0.42
DIE HEAD
Head type	Continuous extrusion head
Head No	1	2		3	4
Central distance / mm	-	160		110	85
Max die diameter / mm	150	80		50	30
Heating zong No	2	3		4	5
Heating power	5.7	4.8		5.2	6.5

---
