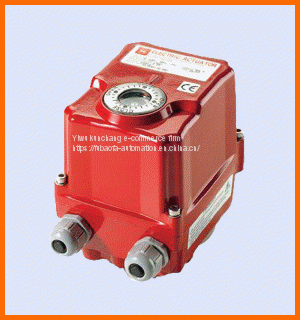

| HQ (MODEL) | Maximum output torque | Operating time(sec.) 60/50Hz | Mounting size | Motor class F power(W) 60Hz/50Hz | Rated current(A) 60Hz/50Hz | Duty cycle IEC 34-1 | Number of handle turn | Weight | ||
| 1Phase | N | |||||||||
| Kg.m | 90° | ISO 5211 | 110V | 220V | 110V | 220V | S4(%) | Kg | ||
| HQ-006 | 6 | 12 / 14 | F03 / F05 / F07 | 54.5/ 46.8 | 40.9/ 38.0 | 0.39/ 0.35 | 0.18/ 0.17 | 35 | 8 | 3 |
| Enclosure | Weatherproof enclosure IP67 |
| Power supply | 110/220V AC 1PH, 50/60Hz, ±10% |
| Duty cycle(on-off duty) | S2 35% |
| Output torque | 60Nm(6kg.m) |
| Motor | Reversible motor |
| Limit switches | Open/close, SPDT, 250V AC 10A rating |
| Additional limit switches | Open/ close, SPDT, 250V AC 10A rating |
| Space heater | 2W (110/220V AC)Anti-condensation |
| Manual override | Handwheel (hexagon design) |
| Cable entries | Two PG 13.5 Tap(Option : NPT1/2 PT1/2 , PF 1/2 ) |
| Movement angle | 320 ±10 (0 ~330 ) |
| Ambient temperature | -20℃ ~+70℃ |
| External coating | Polyester powder coating |
| Standard color | Red or blue |
| PIU | Potentiometer unit(0~1 ) |
| PCU | Proportional control unit (In/out:0~10V, 4~20mA DC) |
| CPT | Current position transmitter (Output 4~20mA DC) |
| ADCM | Multi(24VAC/DC) |
| DCM | DC motor (24VDC) |
| LCU | Local control unit |
| -remote/local | |
| -open/stop/close |
| Product Dimension | |||||||||
