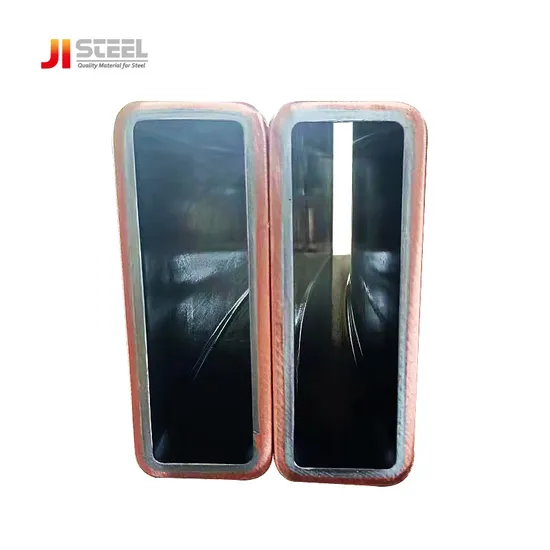

CCM Continue Casting Mould Customized Size Copper Mould Tube

Product Description

Product Description
CCM Continue Casting Mould Customized Size Copper Mould Tube
Copper Mould Tubes are the most essential part of a Continuous Casting Machine. These help in solidifying Liquid Metal in Continuous Casting Machine for producing Steel Billets. Copper Mould Tube are situated in the heart of continuous casting machine. Mould requires extreme high thermal-conductivity and high strength. The molten steel will be formed into a certain shaped steel billets immediately after it passes through the copper tube.
Copper Mould Tube Material:
At present, Deoxidized phosphorus copper (TP2), Silver-bearing copper (CuAg0.1) and Cu-Cr-Zr are normally selected as the material to produce copper mould tubes.
TP2/Cu-DHP
This kind of material is selected by most of the steel plants. It shows excellent heat-proof and anti-fatigue property under high temperature and it has good
processing property
CuAg
Adding 0.08%-0.12% silver during copper ingots melting will increase the re-crystallization temperature of copper by 100 ºC, which will increase the heat stress and anti-abrasive property of copper mould tube interior surface, showing better heat- resistant property than Tp2.
Cu-Cr-Zr
Cu-Cr-Zr is a kind of copper alloys which can be normalized by time. It has excellent mechanical property under both room temperature and high temperature. It has high heat conductivity, melting point, anti-fatigue and anti-heat stress properties. These outstanding features make it difffferent from the previous copper alloys. It combines all good properties together. But compared with other copper alloys, Cu-Cr-Zr is difficult to be formed with higher products costs.
Mould Coatings
The chrome plating thickness recommended by CCM will be controlled in the best range. As for the coating of copper mould plates, based on our 20 years of experience, we can provide professional Chrome coating, Ni-Cr coating, Ni-Fe coating and Ni-Co coating to meet the demand of various customers both at home and abroad
Detailed Photos
Product Parameters

Copper Mould Tube Material
Item	Temp.	Unit	Material
			CuDHP	CuAg0.1	CuCrZr
Chemical Composition
			P0.015-0.040	Ag0.08-0.12	Cr0.30-1.20
				P0.04-0.012	Zr0.03-0.30
Physical Properties
Electrical conductivity	20	%IACS	83	95	80
Thermal conductivity	20	W/(m.k)	340	372	330
Coefficient of thermal expansion	20-300	10'-6/K	17.1	17.1	17.2
Recrystallisation temperature		ºC	345	360	690
Modulus of elasticity	20	10'3MPa	120	123	126
Melting point		ºC	1083	1083	1078
Specific gravity		g/cm3	8.9	8.9	8.9
Mechanical Properties
Ultimate tensile strength	20	Mpa	240-310	240-310	375-445
Ultimate tensile strength	100	Mpa	190-270	230-270	365-425
Ultimate tensile strength	200	Mpa	140-190	205-240	365-410
Ultimate tensile strength	300	Mpa		175-210	335-375
Ultimate tensile strength	400	Mpa		145-160	315-350
0.2Yield point strength(Rp0.2)	20	Mpa	190-250	200-225	280-355
0.2Yield point strength(Rp0.2)	100	Mpa	185-260	195-240	270-345
0.2Yield point strength(Rp0.2)	200	Mpa		180-225	260-330
0.2 Yield point strength(Rp0.2)	300	Mpa		165-215	250-320
0.2Yield point strength(Rp0.2)	400	Mpa		130-145	240-290
Elongation(A5)	20	%	25_10	16_10	20-13
Hardness	20	HB	80-95	110-125	115-130

Our Advantages
1. The technical team of more than 20 people provides customers with professional and cost-effective design solutions.
2. Each process has a special quality supervisor to strictly control the quality.
3. Perfect and timely after-sales service system, 24-hour response to customer needs, worry-free after-sales.
Company Profile
Founded in 2004, JI Steel has 20 years of professional experience in the metallurgical industry and is committed to the design, production, research and development of materials in the metallurgical and steel industry, and provides a series of high-quality, innovative and cost-effective products and solutions for steel mills. The main products include copper mould tubes, graphite electrodes, refractories for steel-melting and continuous casting.
JI Steel has 3 factories, nearly 10,000 employees, and an independent scientific research and technical team of 50 people with rich experience in the metallurgical and steel-making industries. It can provide customers with customization, design, construction, installation, maintenance, replacement, and technical consultation. and other services. JI Steel has advanced CNC machining center, advanced production technology, advanced water treatment system, and strictly controls zero discharge in accordance with environmental protection requirements to build a green and environmentally friendly enterprise.
Our products are recognized by SGS, OMIC, IKA, ISQI, COTECNA and other well-known international inspection agencies, and our products are exported to Europe, Asia, Africa, South America, the Middle East and other countries, enjoying a good reputation.
