High Quality Monocular Biological Microscope GM-01E

Product Description

1.Introduction:
Fully coated optical system, Mechanical tube length 160MM
Interpupilary distance 55-75MM, 360° Rotatable
45MM parfocal and achromatic Objectives
Coaxial coarse and fine focus adjustment: Range 30MM, division of fine focus adjustment 0.002MM
Focusing stop to prevent objectives & slides from damaging
Rack and pinion adjustment for condenser
Built-in illumination, Adjustable brightness
Power supply 110V or 220V, CE approval
A wide range of accessories to be equipped with this multi-purpose microscope
2.Photos:

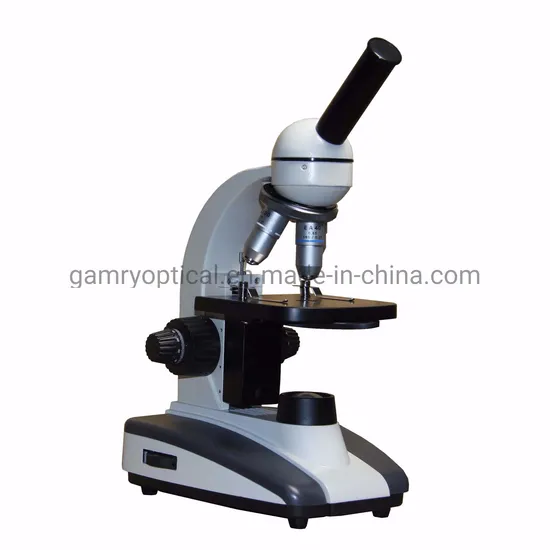

GM-01E
GM-02E
GM-03E
3.Feature

Standard configuration:
Viewing Head	Monocular head Inclined at 45º, 360° rotatable
Nosepiece	Triple nosepiece
Eyepiece	WF10X
Objective	Achromatic 4X, 10X, 40X(S)
Stage	Plain stage with slide clips, stage size: 120×125mm
Condenser	Single lens with disc diaphragm
Focusing	Coaxial coarse & fine focus adjustment
Illumination	Built-in illumination, halogen lamp 6V/20W
Package	Each set in styrofoam put to one inner box, 1 inner box filled to 1 carton
G.W	5.5kg
N.W	4.5kg
Optional Accessories	WF16X eyepiece
	Sliding ruler

4.Packing

---
