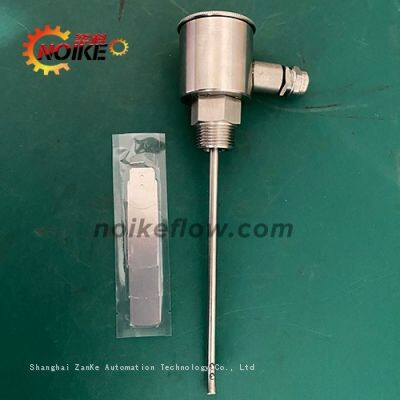

NOIKE Explosion-proof Target Type Flow Switch NK01BS Baffle Type

Product Details

Product Description

Product Description
Principle Characteristics
Baffle flow switch is mainly an explosion-proof flow switch designed for industrial explosion-proof area. It is suitable for when the flow rate exceeds the set value, the fluid pushes the baffle and drives the micro switch on the top through the mechanical device in the flow switch.
Product Application
Gas-liquid dual type, fire protection industry/chemical industry/industrial automation/mechanical equipment/smelting equipment/hydraulic lubrication equipment.
Technical Parameters
◇ Scope setting: see the table below
◇ Reproducibility: ±2.5% of the total range
◇ Wiring mode: terminal wiring
◇ Output form: micro switch SPDT (normally
open + normally closed) output
◇ Withstand pressure: 100bar
◇ Average pressure loss: 0.08bar(at maximum flow)
◇ Ambient temperature: -25... 80 °C
◇ Dielectric temperature: 250°C
◇ Interface thread: R1 thread
◇ Protection level: EX CT4
◇ Materials
Main body: stainless steel
Process connection: stainless steel
Connecting rod: stainless steel
Baffle: stainless steel
Protective enclosure: stainless steel explosion-proof junction box
Size Chart（mm）
Prompt Order
1. When ordering, please indicate medium flow direction, medium type, pipe diameter and expected setting value.We can help you to complete the setting before delivery.
2. If it is a viscous medium, please indicate the viscosity, temperature and type of medium.
3. For gaseous medium, please indicate pressure (gauge pressure /absolute pressure), temperature and medium type.
4. The micro switch can be imported according to customer demand two options.

---
