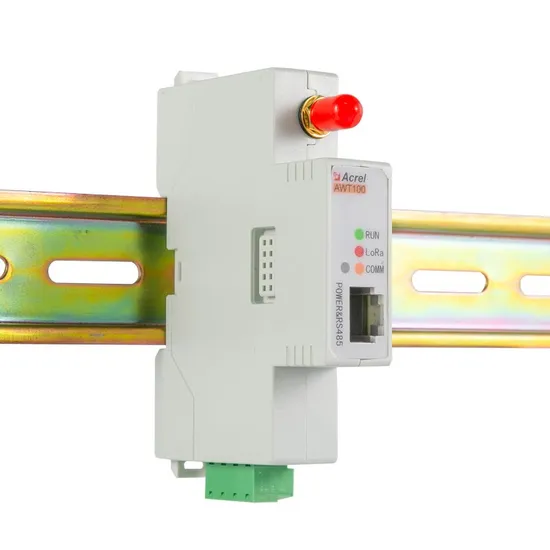

Acrel Wireless Communication Terminal GPS Location DIN Rail Mounted RS485 Communication Interface Awt100-GPS

Product Description

Product Description AWT100 wireless gateway communication terminal is a new wireless data acquisition device launched by Acrel. The uplink communication includes 2G, 4G, NB, LoRa, LoRaWAN and other communication modes. The downlink interface provides a standard RS485 data interface, which can easily connect power meters and RTUs, PLC, industrial computers and other equipment, only need to complete the initial configuration, you can complete the data acquisition of MODBUS equipment; at the same time AWT100 series wireless communication terminal uses a powerful micro-processing chip, with built-in watchdog technology, reliable performance stable .

Product Parameters

Downstream	RS485 communication
Uplink	4G communication	NB-IoT communication	2G communication	LoRa communication	WiFi communication
SIM Card Voltage	3V,1.8V			/
Antenna Interface	50Ω/SMA(Female head)
Serial Port Type	RS-485
Baud Rate	4800bps,9600bps,19200bps,38400bps(default 9600bps)
Working Voltage	DC24V or AC/DC220V
Working Temperature	-10ºC~55ºC
Storage Temperature	-20ºC~70ºC
Humidity Range	0 to 95% non-condensing

Parameter name	AWT100-GPS	AWT100-WiFiHW	AWT100-CE	AWT100-DP
Work	Positioning accuracy: 2.5-5m	Support 2.4G&5G frequency band WiFi rate: 115200bps	Ethernet rate 10/100M adaptive	Profibus address: 1~125. (Note)
Downlink	RS485 Communication	RS485 Communication	RS485 Communication	RS485 Communication
Uplink	GPS positioning	WiFi wireless	Ethernet communication	Profibus communication

Working current	Static power consumption:≤1W,transient power consumption:≤3W	Static power consumption:≤1W,transient power consumption:≤3W	Static power consumption:≤1W,transient power consumption:≤3W	Static power consumption: ≤0.5W, transient power consumption: ≤1W
Interface	50Ω/SMA(Faucet)	50Ω/SMA(Faucet)	RJ45	DP9
Serial port type	RS-485 Communication	RS-485 Communication	RS-485 Communication	RS485-Communication
Baud rate	4800bps,9600bps,19200bps,38400bps(Default 9600bps)	4800bps,9600bps,19200bps,38400bps(Default 9600bps)	4800bps,9600bps,19200bps,38400bps(Default 9600bps)	4800bps,9600bps,19200bps,38400bps(Default 9600bps)

Operating Voltage	DC24V or AC/DC220V	DC24V or AC/DC220V	DC24V or AC/DC220V	DC24V or AC/DC220V
Operating temperature	-10ºC~55ºC	-10ºC~55ºC	-10ºC~55ºC	-10ºC~55ºC
Storage temperature	-40ºC~85ºC	-40ºC~85ºC	-40ºC~85ºC	-40ºC~85ºC
Humidity range	0~95% Non-condensing	0~95% Non-condensing	0~95% Non-condensing	0~95% Non-condensing

Installation Instructions

---
