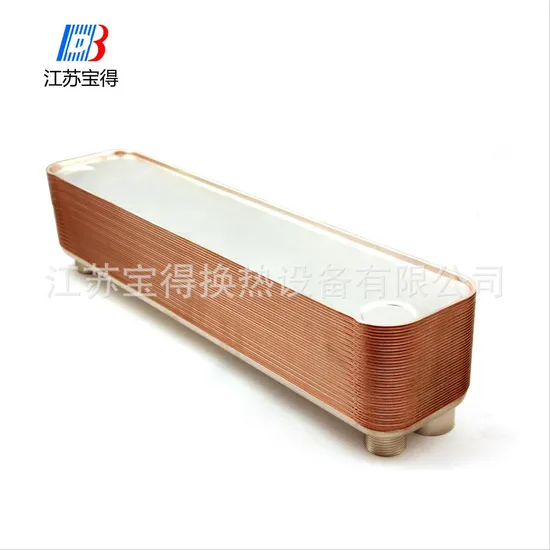

Bl14-14D Bl14-16D Bl14-20d Copper Brazed Plate Heat Exchanger for Domestic Water Heater

Product Description

Detailed Product Description
1. Copper brazed plate heat exchanger
2. For Tap Water heating, boiler, domestic water heater
3. Plates: Stainless steel AISI 316
BL95 Series Copper brazed plate type Tap Water heat exchanger for domestic water heater, boiler, tap water heater
Water heat exchanger principle:
Description
The heating surface consists of thin corrugated metal plates stacked on top of each other. Channels are formed between
The plates and corner ports are arranged so that the two media flow through alternate channels, always in counter-current
Flow. The media are kept in the unit by a brazed seal around the edge of the plates. The contact points of the plates are also
Brazed to withstand the pressure of the media handled.
Standard design
The plate pack is covered by cover plates. Connections are located in the front or rear cover plate. The channel plates are
Corrugated to improve heat transfer efficiency and to make them rigid.
Standard materials
Cover plates: Stainless steel AISI 316
Connections: Stainless steel AISI 316
Plates: Stainless steel AISI 316
Brazing material: Copper
Particulars required for quotation
To enable Baode's representative to make a specific quotation, enquiries should be accompanied by the following particulars:
Flow rates or heat load required
Temperature program
Physical properties of liquids in question
Desired working pressure
Maximum permitted pressure drop
Advantages of brazed plate heat exchangers for domestic water heater, boiler, tap water heater
The Baode Brazed plate heat exchangers (BHE) have several advantages over traditional heat exchangers for domestic water heater, boiler, tap water heater.
The high heat transfer efficiency of the BHE makes it extremely compact and also easy to install in places were space is limited.
The unit has no gaskets and is therefore suitable in applications were temperature and/or pressure is high e. G. In district heating.
The Baode supply system reassures that, no matter were you are on the globe, the BHE units are available with a very short
Delivery time.
Refrigeration Systems:
Evaporator,
Condenser,
Economizers and Desuperheaters
Air dryer
Heat pump
Absorption chiller
HVAC
Radiant Floor,
Snow Melt,
Boiler and
Solar water heat exchanger
District heating
Other Industrial applications such as:
Heat Recovery and
Oil Cooler: Hydraulic oil cooling, engine oil cooling, and fuel oil heating.
Steam Heating.
Flat plate heat exchanger
Beer wort cooler
Milk pasteurization
Wind turbine oil cooler
Marine oil cooler
Short delivery time.
High quality
Reasonable price
Customer made
Know-how design and customer support

Width	Height	Horizontal port distance	Vertical port distance	Thickness	Max Plates	Max flowrate (M3/h)	Weight (kg)	Heat exchange area (m2)	Volume L
191	616	92	519	11+2.35N	200	42	7.0+0.36N	0.095 (N-2)	0.0105 (N-2)

---
