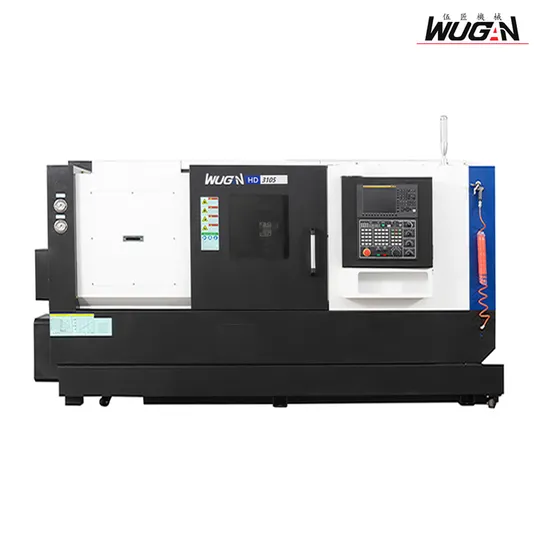

High-Precision CNC Milling Machine for Fine Work and Lathe

Product Description

Product Description
· One-bed,30° inclined bed, which significantly enhances machining stability.
· The incorporation of hard rails on all axes ensures the production of superior quality products.
· Achieves remarkable rapid traverse speeds of up to (X/Z): 265/730 m/min.
· An optimal lineup of structures tailored to customer needs, including extended beds, turret punch presses, and servo axes.
· Compact design with a built-in motor minimizes the machine's length (standard bed style).
· Ergonomically designed for effortless operation and maintenance.

basic specification		Unit	HD3105
Maximum Swing Diameter		mm	φ740
Maximum swivelling diameter of the bed saddle		mm	φ656
Maximum cutting diameter		mm	φ500
Maximum cutting length		mm	708
spindle
Spindle motor power (continuous/30 min)		kw	15/18.5
Maximum spindle speed		rpm	2800
Spindle nose			A2-8
Spindle through-hole diameter		mm	φ91
Bar capacity		mm	φ74
Collet size		inch	12"
feed axis
Maximum stroke X/Z		mm	265/730
X/Z axis motor power		kw	syntec:3.9 fanuc:3
Fast shift speed X/Z		m/min	24/30
X/Z slide type			Box
C-axis (optional )
Minimum spindle positioning accuracy
Dynamic accuracy
turret
Turret Capacity			12
Quadratic cutter		mm	25
Round cutter		mm	φ50
Power Turret Motor Power		kw
Power Turret Tool Specifications
Power tool speed		rpm
tailstock
Mandrel Diameter		mm	φ100
Mandrel Stroke		mm	120
Tailstock body stroke		mm	730
Taper hole taper			MT#5
Programmable Control Mandrel/Tailstock Body			yes/no
Tailstock body movement method			saddle-driven [Programmed
Mechanical specifications
Positioning accuracy (X/Z)		mm	±0.007
Repeat Positioning Accuracy(X/Z)		mm	±0.003
CNC system			syntec or fanuc
chip conveyor			sidebar
Exterior(L×W×H)		mm	3284x1817x1755
Machine weight		kg	5800

Detailed Photos
One-piece bed
Optimised structural analysis
Optimisation of the main unit structure through structural analysis reduces the machine's height and maintains the bed's dynamic rigidity during heavy machining. The dynamic rigidity of the bed is preserved even during intense cutting. Additionally, the HD-3105's 30° inclined bed significantly enhances machining stability.
Integrated Cutting Fluid Tank
The cutting fluid tank is conveniently mounted at the front of the bed for improved usability, while the right side of the machine is designed for easy cleaning of ferrous chips.
Hard Rail
Hard rails on all axes offer outstanding vibration absorption, even during heavy cutting, ensuring the production of high-quality products. Specifically, the Z-axis is designed with a long shaft, providing exceptional performance in machining long-shaft products.
Sealed GIB construction
The X-axis guideway mounting surface is protected by a sealed GIB structure, minimizing damage caused by cutting. This enhances the durability and performance of the X-axis guideway.
6-sided constrained design improves mobility
Travel X/Y 265/730 mm · Spindle box
The box body's symmetrical design and the heat dissipation plate structure minimize thermal deformation. The shaft uses a combination of tapered roller bearings and angular contact ball bearings, enhancing cutting capability. The 3V belt, being the shortest, reduces vibration and extends the equipment's lifespan.
Spindle specifications: A2-8 (chuck 12")
Spindle speed: 2,800 rpm
Motor power: 18.5/15KW
Suzhou Wugan Intelligent Equipment Co., Ltd. specializes in the production of high-performance CNC lathes and CNC turning centers, designed based on the latest international lathe technology. Combining high rigidity, precision, productivity, and exquisite aesthetics, we offer customers efficient and reliable cutting performance. To meet higher customer demands, the company also offers high-performance mill-turn combined models capable of turning, milling, drilling, and other integrated processing functions. This versatility not only boosts product output capacity but also allows this series of lathes to effortlessly meet diverse processing needs.

---
