| US$100,000.00-500,000.00 | 1 Piece (MOQ) |

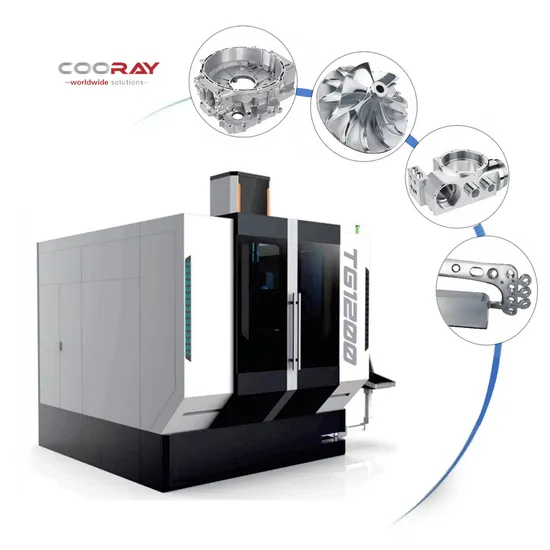

| project | technical parameter | TG1200 |
range of work | Workbench diameter-size | φ1200mm |
| Maximum rotary diameter of the workpiece | φ1400mm | |
| The surface is below the A axis | 100mm | |
| Maximum height of workpiece and fixture | 1100 | |
| Maximum weight of workpiece and fixture | 3000KG | |
5-axis travel | X/Y/Z route or distance of travel | 1200/1400/1000mm |
| The distance between the main axis end face and the work table | 180-1180mm | |
| A-axis front and rear swing range | ±1400 | |
| C-axis rotation range | N×3600 | |
Linear axis Rod, guide servo motor | XYZ guide model | 45 rollers |
| XYZ screw model and pitch | φ50-12 double nut | |
| G00 speed | 72m/min | |
| The maximum speed of XYZ servo motor | 6000RPM | |
| XYZ servo motor rated torque | See the corresponding technical agreement | |
| The rotational axis drives the form of torque and speed | A axis rated/maximum torque | 15000NM |
| Rated speed of A axis | 30RPM | |
| C-axis rated/maximum torque | 8000NM | |
| Rated speed of C axis | 30RPM | |
| main spindle | Electric spindle/machinery spindle | Electric spindle |
| main spindle handle interface | HSK-A100 | |
| main spindle speed | 12000RPM | |
| main spindle torque | 300NM/500NM | |
| Central effluent function is optional | Take the center out of water | |
tool magazine | tool storage capacity | 48T |
| Maximum tool diameter | 125mm | |
| Maximum tool length | 425mm | |
| Maximum tool weight | 30KG | |
| Time to tool | 10S | |
close-cycle control And accuracy | Closed-loop control of XYZ axis is optional | Standard linear encoder (ruler) |
| XYZ axis positioning/repeated positioning accuracy | 0.005/0.003mm | |
| AC axis closed loop control is ptional | Standard round encoder | |
| A-axis positioning/repeated positioning accuracy | 5 "/3" | |
| C-axis positioning/repeated positioning accuracy | 5 "/3" | |
| CNC system | siemens one | |
| Huazhong CNC HNC 848 plus | ||
accessories | Wireless probe | standard configuration |
| Contact tooling instrument | ||
| Laser tool instrument | standard configuration | |
| Size and weight | Length, width and height | 3.3 meters / 5.6 meters / 3.8 meters |
| weight | 40 tons |
