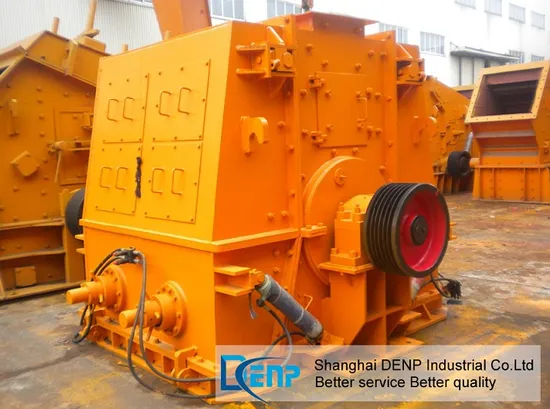

High Performance of Impact Crusher

Product Description

Usage and Application
The JOYAL Impact Crusher is used for primary,secondary and fine crushing of all kinds of stones and rocks with compressive strength less than 350 MPa such as granite,marble,and limestone,The Impact Crusher is widely used for sand and rock production in the industry of roads,railways,reservoir,electricity power,building materials and so on.
Working Principle
The materials are crushed via impact energy produced in the impact crusher.When the materials enter the zone of the board hammer,they are flung into the impact equipments via the high-speed impact of the board hammer.These materials will be re-crushed after rebounding into the scale board.The large materials are crushed into small pieces until it becomes the specified granularities,The end products come out from the base of the impact crusher.
Main specifications

Model	Feeding Hole Dimension(mm)	Maximum Feeding size (mm)	Rotor Dimension(mm*mm)	Handling Ability (t/h)	Power(kw)	Overall Dimension (mm*mm*mm)	Weight(t)
PF1007	400*730	250	Φ1000*700	30~50	37-55	2440*1580*26720	9.8
PF1010	400*1080	250	Φ1035*1050	50~80	55/90	2280*1804*2389	12.8
PF1210	400*1080	350	Φ1250*1050	70~120	110	3165*2027*2729	14.6
PF1214	400*1430	350	Φ1250*1400	95~145	132/160	2571*2403*2705	17
PF1315	860*1520	350	Φ1320*1500	150~200	220	3154*2695*2613	21.5
PF1320	860*2030	500	Φ1320*1200	200~280	315	3320*3218*2613	25
PF1416	1052*1652	500	Φ1420*1600	280~350	355	3405*2813*2713	29
PF1520	2040*1315	700	Φ1512*2000	350~450	400/450	4138*3422*3649	44
PF1620	2040*1315	700	Φ1612*2000	400~600	500	4236*3572*3735	47
PF1820	1620*2040	700	Φ1800*2000	550~800	630/710	4471*3250*4008	66
PF2024	1800*2430	1200	Φ2000*2400	800~1100	1120	4800*4740*4180	115
PF2325	2210*2540	1500	Φ2300*2500	1000~1400	1250/1400	5360*5075*4679	158

---
