CNC Grinding Machine Tool for Cylindrical

Product Description

Product Description
Main purposes of the machine tool:
CNC cylindrical series is a two-axis CNC cylindrical grinding machine that uses a Siemens 808/828D CNC system from Germany with an LCD display. The cylindrical grinding wheel feed and table movement are both driven by a servo motor via a ball screw. The wheel head feed uses a linear feed method, and the feed guide rail uses a linear rolling guide rail to ensure rigidity and sensitivity during feeding. The worktable guide rail uses a flat-V-shaped plastic-coated guide rail to improve its shock resistance and sliding properties.
Product Parameters
Key Technical Parameters for CNC cylindrical series

MODEL	MK1320*500	MK1332*500	MK1332*750	MK1332*1000	MK1332*1500	MK1350*2000
OD GRINDING SCOPE	6-200	8-320	8-320	8-320	8-320	50-500
GRINDING LENGTH OF WORK PIECE	500	500	750	1000	1500	2000
WORKTABLE ROTATION ANGLE	+4,-3	+4,-3	+4,-3	+4,-3	+4,-3	+4,-3
CENTER HEIGHT OF TOPS	125	180	180	180	180	270
HEADSTOCK TOPS(MOHS)	4#	4#/5#	4#/5#	4#/5#	4#/5#	6#
TAILSTOCK TOPS(MOHS)	4#	4#	4#	4#	4#	4#
X AXIS POSITIONING ACCURACY	3	3	4	4	4	8
X AXIS REPETITIVE POSITIONING ACCRACY	2	2	3	3	3	5
Z AXIS POSITIONING ACCURACY	4	4	5	6	8	15
Z AXIS REPETITIVE POSITIONING ACCRACY	2
LONGITUDINAL MOVEMENT DISTANCE OF WORKTABLE	500
MOVING DISTANCE OF GRINDING WHEEL FRAME	250
MOVE AMOUNT OF TAIL FRAME SLEEVE	40	50	50	50	50	60
OD ROUNDNESS	1.5	2	2	3	3	5
OD CYLINDRICITY	3	3	4	5	6	8
SUFACE ROUGHNESS	0.32	0.32	0.32	0.32	0.32	0.4

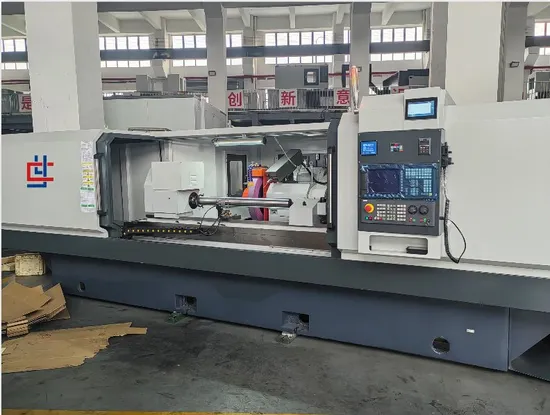

Detailed Photos



Company Profile
Our company offers variety of products in grinding machine which can meet your multifarious demands. Our main products are: CNC high-precision centreless grinding machine; CNC internal and external grinding machine; CNC vertical internal, cylindrical, end face grinding machine; CNC crankshaft grinding machine; CNC crankshaft milling machine; CNC camshaft grinding machine; CNC camshaft milling machine; Multi-function CNC surface grinding machine; Vertical machining center; Vertical gantry type machining Center and so on.At present, these products are mainly used in domestic high-end manufacturing fields such as national defense, research institutes, aerospace, shipbuilding, automobile, mining machinery manufacturing and so on. Users are all over China, and some products are exported to Southeast Asia, Europe and other countries. At present, these products occupy a considerable share in the same industry in China. Some varieties have reached the level of similar foreign products. The product cost performance has obvious competitive advantages at home and abroad.We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.

---
